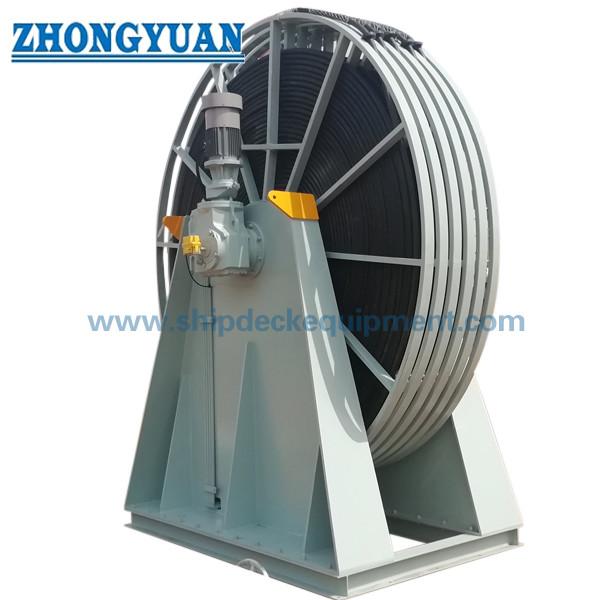

    Low Voltage Shore Power Cable Management System Electric Cable Reel

    Ask Lasest Price
    Brand Name : Zhongyuan
    Model Number : Electrical Cable Reel
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Price : to be quoted case by case
    Payment Terms : TT, L/C, Etc.
    Supply Ability : 1,000pc/year
    Delivery Time : As per offer
    • Product Details
    • Company Profile

    Low Voltage Shore Power Cable Management System Electric Cable Reel

    Electric Cable Reel for Low Voltage Shore Power Cable Management System


    Description:

    This cable management system is equipped with a 3*185 low-voltage cable and a dedicated shore power plug. The single cable length is 50 meters, and the cable winch design meets the ship's operating conditions. The rated current carrying capacity of the shore power box is 350A. The protection level of the cable management system and shore power box is IP56.

    Product Feature:

    IEC rules compliance, class rules compliance, national rules compliance

    Onboard or on shore installation

    IP56 protection

    Cable length can be adjustable

    Remote and local control

    Cable Length Monitoring

    Emergency stop and alarm

    Automatic Management Function, auto tension, retrieval and release

    Standards and specifications

    IEC/ISO/IEEE 80005-3-2016< Utility connections in port - Part 3: Low Voltage Shore Connection (LVSC) Systems - General requirements(IEC

    60309-5)>

    IEC 60309-1

    IEC 60309-5

    accessories for low voltage shore power connection systems(2017)>

    GB/T 36028.2-2018

    GB/T 11918.5-2020

    systems) >

    GD22-2015 Guide for Type Approval testing of electrical and electronic products

    Chapter 1, Part Three, Chapter 2,3, Part Four of CCS2022 and its Amendments

    Chapter 1, Part Three, Chapter 2, Part Four of CCS 2022 and its Amendments

    Chapter 1, Part Two, Chapter 3, Part Three of CCS 2016 and its Amendments

    Chapter 7,8 of CCS2018

    Chapter 5, Part Eleven of

    2020 and its Amendments, of MSA, P.R. China

    Chapter 2, Part Five of 2019 and its Amendments, of MSA, P.R. China

    Chapter 3 of 2018, of MSA, P.R. China

    Chapter 2, Part Eight of 2018

    Amendments of MSA, P.R. China

    Environment Conditions

    1) Installation Location:Onboard installation.

    2) Ambient Temperature:-25℃~+45℃

    3) Relative Humidity:≤98%

    4) Altitude:≤1000m

    Summary

    This Cable Management System is mainly composed of frame, cable reel, motor and reducer assembly elec. slip ring assembly, elec. control system, hysteresis coupling, shore power cable and shore power plug and other components.

    S/NNameQuantity
    1Frame assembly1
    2Cable reel assembly
    3Motor and reducer assembly1
    4Elec. slip ring assembly1
    5Elec. control system1
    6Hysteresis coupling1
    7Shore power cable 3*185+1*95+4*2.550m*1
    8Shore power plug1

    The cable winch neatly collects a 50-meter cable on the cable reel, which is driven by motor. The cable with a plug can be reversed through the lower part of the reel.

    Main Functions

    Collect the cable

    Manual operation control box on the collect cable button, winch collect the cable.

    Using the remote control can also collect the cable.

    Manual operation control box on the release cable button, winch releases the cable.

    Using the remote control can also release the cable.

    Cable Length Monitoring

    When the cable is fully wound, the winding action is stopped and the display shows.

    When there last 4 turns, the display and audio-visual alarm respond;

    When there last 1 turn, the shore-side safety circuit is disconnected from the shore power supply, and the display and audio-visual alarm respond.

    Emergency stop

    Pressing the emergency stop button cuts off the shore-side safety circuit of the shore power supply and the power supply of the winch control system.

    Cable Automatic Management Function

    During shore power use, the cable reel can detect the change in cable tension in real time based on the position and tidal changes of the vessel through the tension and control system. The cable reel can automatically release or store the shore-to-ship connection cable according to the change in cable tension value to prevent the cable from being too tight or too loose.

    Automatic cable release: When the vessel discharges cargo or the tide rises, causing the vessel to rise, the cable tension increases, and when the monitored cable tension exceeds the preset value, the control system automatically controls the motor to release a certain length of cable. When the monitored cable tension value returns to normal, the control system gives the signal for the motor to stop releasing cable, and the motor stops rotating and simultaneously engages the brake.

    Automatic cable retrieval: When the vessel loads cargo or the tide falls, causing the vessel to descend, the cable tension decreases. When the monitored cable tension is less than the pre-set value, the control system automatically controls the motor to retrieve a certain length of cable. When the monitored cable tension value returns to normal, the control system gives the signal for the motor to stop retrieving cable, and the motor stops rotating and simultaneously engages the brake.

    Technical parameters of main components

    Inverter motor

    Rated

    Power

    Rated

    Voltage

    Rated

    frequency

    Rated

    Current

    Rated

    speed

    Class of

    protection

    Insulation

    grade

    2.2KW380V/440V50Hz/60Hz5.1A/4.5A1405r/min to 1730r/minIP56F

    Reducer

    RatioOutput max. torqueMax. allowed radial forceClass of protection
    146:12100N.m27300NIP56

    Hysteresis coupling

    Output torqueRated speedClass of protection
    5~8Nm≤1800r/minIP56

    Cable reel assembly

    TypeReel typeDimensionsLength

    Reel material and

    surface treatment

    Class of protection
    reelsingle row, multilayer

    (O.D x I.D x width) :

    Φ2250xΦ800x600mm

    ~50m*1

    (diameter ≤ 65mm)

    steel + sprayed Marine

    anti-corrosion paint.

    IP56

    Electric slip ring assembly

    TypeSlip ring:Ring Electric CapacityClass of protection

    Electric slip ring assembly

    placed in the reel.


    3 Power ring

    1 Earth ring

    4 Control ring

    3*350A+1*200A+4*20AIP56

    Control box & Junction box

    MaterialClass of protection
    304 stainless steelIP56

    Shore power cable

    ModelTypeDiameterLengthQuantityClass of protection
    3*185+1*95+4*2.5CADEF≤65mm~50m*11IP56

    Shore power plug

    ModelTypeRated VoltageRated currentQuantityQuantityClass of protection
    JL17

    3 Power core,

    1 Earth core,

    4 Control core

    AC690


    350A11IP56


    Drawing of Electric Cable Reel for Low Voltage Shore Power Cable Management System
