    Super Cell Type Rubber Fender With Front PE Pad

    Super Cell Type Rubber Fender With Front PE Pad


    Description:

    The super cell type rubber fender is a well-established rubber fender type, with a hollow cylindrical body and fully rubber-embedded mounting flanges. It is designed to deflect in an axial direction up to 52,5% design deflection.

    Supper cell type rubber fenders is available in heights between 400 and 3,000 mm.

    They are among one of the most used rubber fender in the maritime industry. Its simplicity, easy to installation, strength and high performance has made a solid performance record. Available in variety of shapes and size they are capable of supporting both small and large vessels with minimum reaction force. The key feature of this design is that it can be used for vessels with low hull design.

    Furthermore they can be used alone, as a pair or in multiple combinations. It consists of a rubber embedded flange mounted on a hollow cylindrical body. It offers high energy to weight ratio and is a cost-effective solution to the modern parallel motion fenders.


    Main Applications

    Container & Bulk Terminals, Oil & Gas Terminals,

    Ferry & Ro-Ro Terminals, Navy

    General Cargo Terminals, Cruise Terminals


    Main Technical Specifications: Feature

    1. Easy assembly & installation
    2. Good shear force resistance
    3. Cost-effective: large footprint leads to a good load distribution over the front panel, which results in a lighter panel construction
    4. Very robust, Reasonable structure; High performance, Strong, well-proven design.
    5. High energy absorption and low reaction force;
    6. Excellent under berthing angle and shear; Ideal for low hull pressure systems.
    7. Can support large panels.

    Main Technical Parameters:

    TypeHhD1D2n-ΦdMDh1LWeight(kg)
    SC-H400400255506504-Φ30221027076
    SC-H500500255506504-Φ322412300110
    SC-H630630307008404-Φ393014330230
    SC-H8008003090010506-Φ403214360410
    SC-H1000100035110013006-Φ473918430790
    SC-H1150115040130015006-Φ5042225001200
    SC-H1450145047165018506-Φ6152265702300
    SC-H1600160050180020008-Φ6152285703000
    SC-H1700170055190021008-Φ6656306203600
    SC-H2000200055200022008-Φ7464327005200
    SC-H22502250602300255010-Φ7464367007400
    SC-H25002500702700295010-Φ74643870010500
    SC-H30003000753150335012-Φ90764080018500

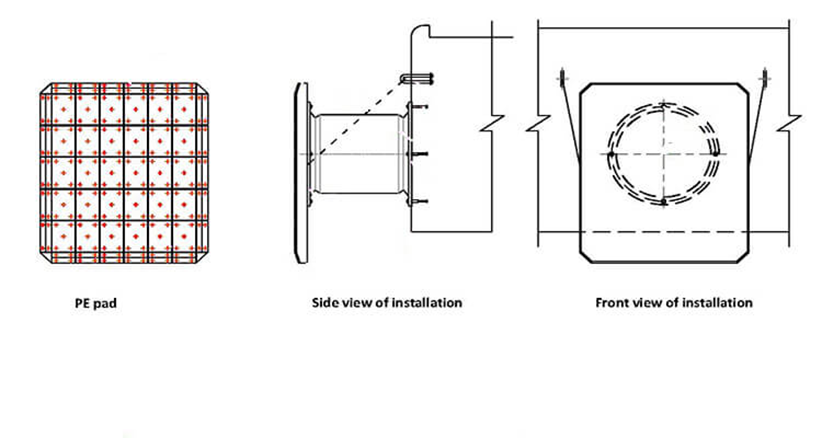

    Drawing of Super Cell Type Rubber Fender With Front PE Pad
