    JIS F 2031 Casting Steel Bar Type Anchor Chain Stopper Ship Mooring Equipment

    Ask Lasest Price
    Brand Name : Zhongyuan
    Model Number : Standard and Customized
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Price : As per quotation
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    Delivery Time : As per offer
    • Product Details
    • Company Profile

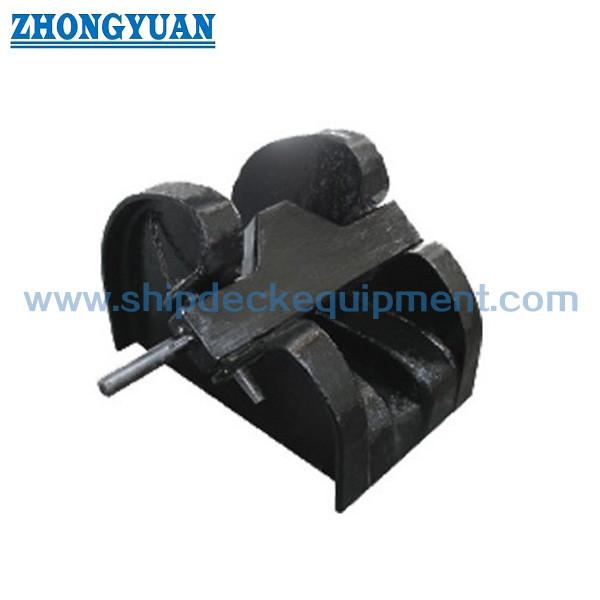

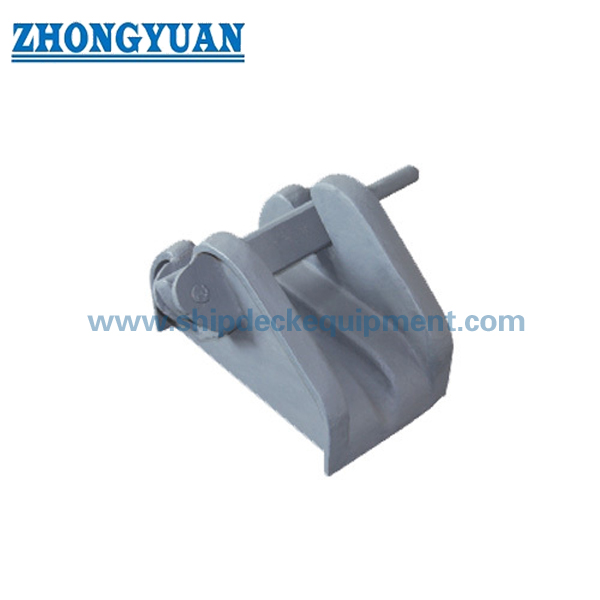

    JIS F 2031 Casting Steel Bar Type Anchor Chain Stopper Ship Mooring Equipment

    JIS F2023 Cast Steel Bar Type Anchor Chain Stopper


    Description:

    JIS F2023 cast steel bar type anchor chain stopper is made of casting steel. The anchor chain stopper is applicable for smaller size chain which is without roller. Chain stopper always share the pull load suffered by windlass. Chain stopper is commonly used to control the movements of anchor in the tight position to avoid damage of the hull. The bar type anchor chain stopper can be combined with the rollers in front of it to reduce the friction during releasing and rolling up the anchor chain.


    Main Technical Specification;

    1. Technical Standard: JIS F2023-1976
    2. Type: Bar Type
    3. Chain Size: 17-36mm
    4. Materials: Casting Steel, Steel Forging,
    5. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, customized surface treatment available.
    6. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
    7. Can be Customized

    Main Technical Parameter:

    Number192225283236
    Diameter of apply Anchor Chain17~1920~2223~2526~2830~3234~36
    A190216241270305342
    B270310345385435490
    C200226256280320254
    D134153175193220246
    Weight(kg)172433446892

    Drawing of JIS F2023 Cast Steel Bar Type Anchor Chain Stopper
