    Marine Trawl Chain

    Ask Lasest Price
    Brand Name : Zhongyuan
    Model Number : Standard and Customized
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Price : As per quotation
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    Delivery Time : As per offer
    • Product Details
    • Company Profile

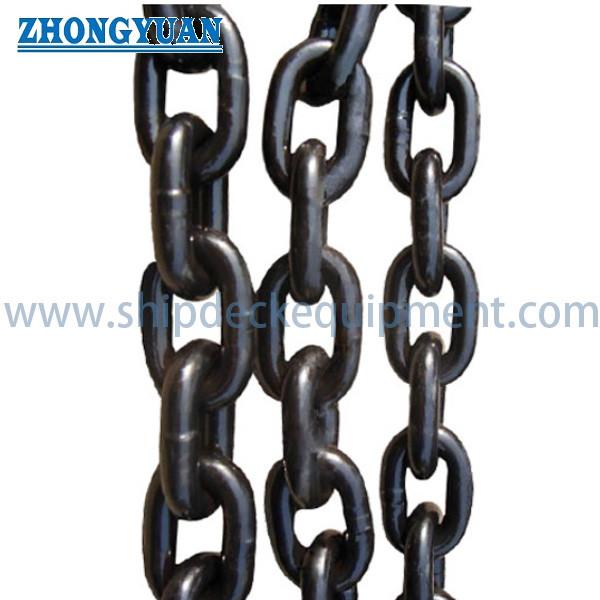

    Marine Trawl Chain

    Marine Trawl Chain


    Description:

    Marine trawl chain belongs to the type of tuna chain/fishing chain, which can be used as transmission chain. It is generally transported through plywood box / wooden bag / hemp bag / steel barrel + pallet. It has passed the certification of ISO9001, CE and BV. It is heat-resistant and high-temperature resistant, and is widely used in life.


    Main Technical Specifications:

    1. Type: Tuna Chain/Fishing Chain
    2. Structure: Flash Butt Welded Chain
    3. Material: Alloy,Carbon Steel
    4. Color: Self Color or as requested
    5. Safety Factor: Min 4
    6. Quality Grade: G80
    7. Usage: Transmission Chain


    Main Technical Parameters:

    Chain TypeSize(mm)Chain
    Diameter(mm)
    Width(mm)Weight(kg/m)Breaking Load
    min(KN)
    Inside Min.Outside Max.
    Short Link
    Chain
    7*2171025.51.0953
    10*301014362.2109
    13*391318.147.13.8172
    16*481622.457.45.63281
    19*571927.868.87.99397
    20*602029728.85440
    Mid Link Chain10*401015371.97109
    13*521319.548.53.36172
    14*501418.549.54215
    16*641624595.06281
    19*761928.569.57.15397
    22*862227749.45532
    26*9226318613.63743
    Long Link Chain7*4571025.50.8353
    9*53915351.4589
    11*631118432.16132
    13*801322512.93172
    16*1001626614.42281
    19*1001927686.45397
    22*1202237848.74532
    28*150284410314.3860
