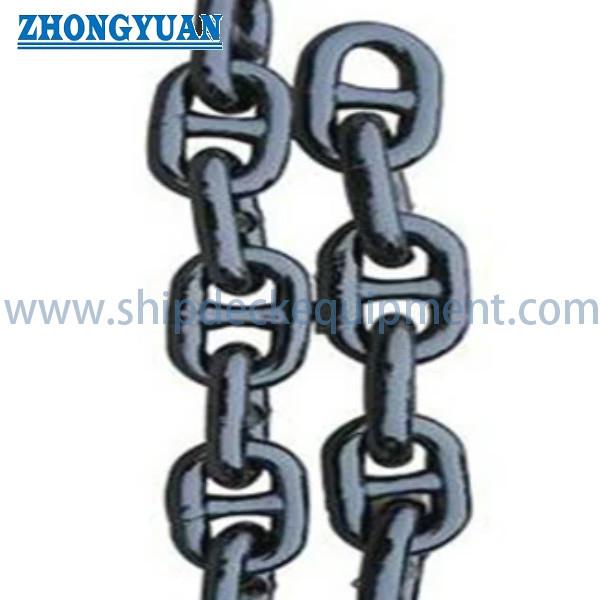

Fishing Chain
Fishing chain belongs to the type of welding chain, which can be
used as transmission chain, drag chain, conveying chain and special
chain. It is generally transported through plywood box / wooden bag
/ hemp bag / steel barrel + pallet. It has passed the certification
of ISO9001, CE and BV. It is heat-resistant and high-temperature
resistant, and is widely used in life.
Main Technical Specifications:
Main Technical Parameters:
ype | Nominal Diameter | Pitch(mm) | Width (mm) | Weight | Breaking Load Min. KN | |
Inside Min. | Outside Max. | kg/m | ||||
Short Link Chain | 7 | 21 | 10 | 25.5 | 1.05 | 6o |
10 | 30 | 14 | 36 | 2.2 | 125 | |
13 | 39 | 18.1 | 47.1 | 3.8 | 214 | |
16 | 48 | 22.4 | 57.4 | 5.63 | 320 | |
19 | 57 | 27.8 | 68.8 | 7.81 | 450 | |
20 | 60 | 29 | 72 | 8.52 | 600 | |
Mid Link Chain | 10 | 40 | 15 | 37 | 1.9 | 125 |
13 | 52 | 19.5 | 48.5 | 3.31 | 214 | |
14 | 50 | 18.5 | 49.5 | 4 | 250 | |
16 | 64 | 24 | 59 | 4.97 | 320 | |
19 | 76 | 28.5 | 69.5 | 6.92 | 450 | |
22 | 86 | 27 | 74 | 9.5 | 610 | |
26 | 92 | 32 | 86 | 13.7 | 850 | |
Long Link Chain | 7 | 45 | 10 | 25.5 | 0.82 | 60 |
9 | 53 | 15 | 35 | 1.36 | 100 | |
11 | 63 | 18 | 43 | 2.16 | 152 | |
13 | 80 | 22 | 51 | 2.93 | 214 | |
16 | 100 | 26 | 61 | 4.34 | 320 | |
19 | 100 | 27 | 68 | 6.31 | 450 | |
22 | 120 | 37 | 84 | 8.74 | 610 | |
28 | 150 | 44 | 103 | 14.41 | 980 |
![]() |
