Brand Name : | Zhongyuan |
Model Number : | Standard and Customized |
Certification : | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
Price : | As per quotation |
Payment Terms : | TT, L/C, Etc. |
Supply Ability : | Satisfy clients needs |
Delivery Time : | As per offer |

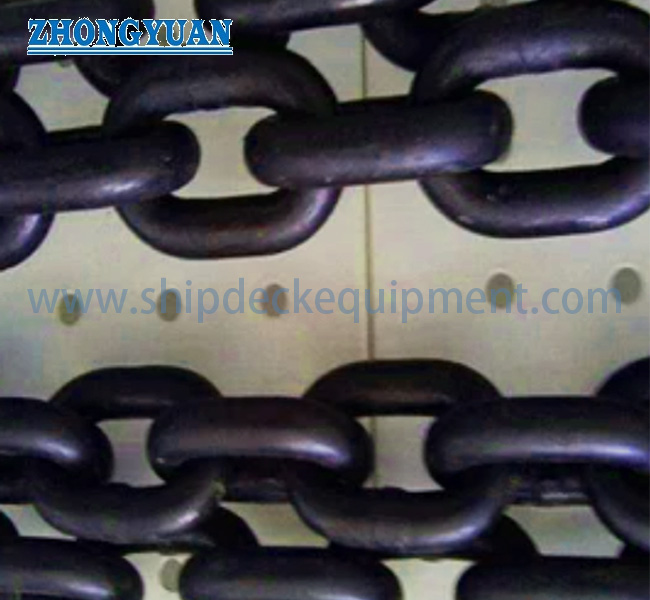

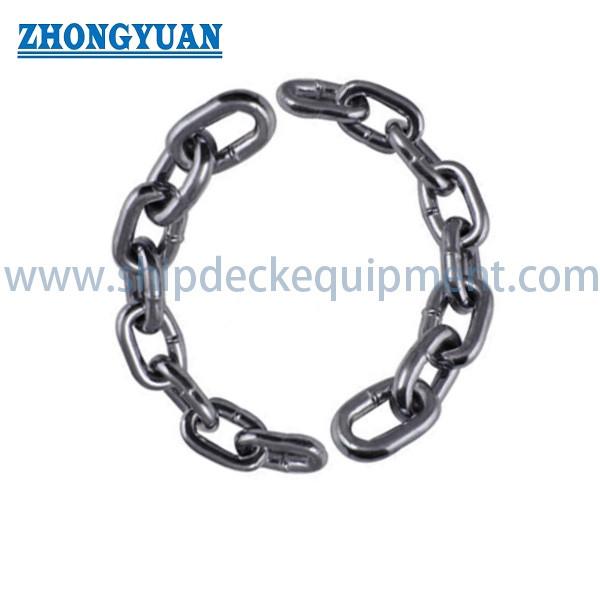

Chain DIN5685 With German Standard
Chain din 5685 with German standard are a sort of welded, round steel chain with long or short-length links that are neither calibrated nor tested. These chain are made to German Standard. The material of chain is in line with DIN 17151. The chain are not suitable for lifting applications, nor being subjected to static loads. There are two types of the chain din 5685, A (short) and C (long). Finishes of chain din 5685 are self-colored, black painted, bright zinc painted, and hot dip galvanized.
Main Technical Specifications:
Main Technical Parameters:
Size(d) | Inside Length (t) | Outside Width(b) | Weight Per 100m | Working Load | Breaking Load | Type Of Link |
mm | mm | mm | kg | n | n | |
2 | 12 | 8 | 7 | 500 | 1250 | A |
22 | 6 | C | ||||
2.5 | 14 | 10 | 11 | 750 | 2000 | A |
24 | 10 | C | ||||
3 | 16 | 12 | 16.5 | 1120 | 2800 | A |
26 | 15 | C | ||||
3.5 | 18 | 14 | 22.5 | 1500 | 3850 | A |
28 | 20 | C | ||||
4 | 19 | 16 | 30 | 2000 | 5000 | A |
32 | 27 | C | ||||
4.5 | 20 | 18 | 39.5 | 2500 | 6300 | A |
34 | 35 | C | ||||
5 | 21 | 20 | 50 | 3150 | 7750 | A |
35 | 43 | C | ||||
5.5 | 23 | 22 | 60.5 | 3800 | 9500 | A |
38.5 | 52 | C | ||||
6 | 24 | 24 | 73 | 4500 | 11500 | A |
42 | 63 | C | ||||
6.5 | 26 | 26 | 86 | 5400 | 13500 | A |
45.5 | 74 | C | ||||
7 | 28 | 28 | 100 | 6000 | 15000 | A |
49 | 86 | C | ||||
8 | 32 | 32 | 130 | 8000 | 20000 | A |
52 | 110 | C | ||||
8.5 | 34 | 34 | 149 | 9000 | 22500 | A |
56 | 125 | C | ||||
9 | 36 | 36 | 165 | 10000 | 25000 | A |
59 | 141 | C | ||||
10 | 40 | 40 | 205 | 12500 | 31000 | A |
65 | 175 | C | ||||
11 | 44 | 40 | 250 | 15000 | 38000 | A |
72 | 211 | C | ||||
12 | 48 | 48 | 290 | 18000 | 45000 | A |
78 | 255 | C | ||||
13 | 52 | 52 | 345 | 21200 | 53000 | A |
82 | 295 | C |
![]() |
