Brand Name : | Zhongyuan |
Model Number : | Standard and Customized |
Certification : | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
Price : | As per quotation |
Payment Terms : | TT, L/C, Etc. |
Supply Ability : | Satisfy clients needs |
Delivery Time : | As per offer |

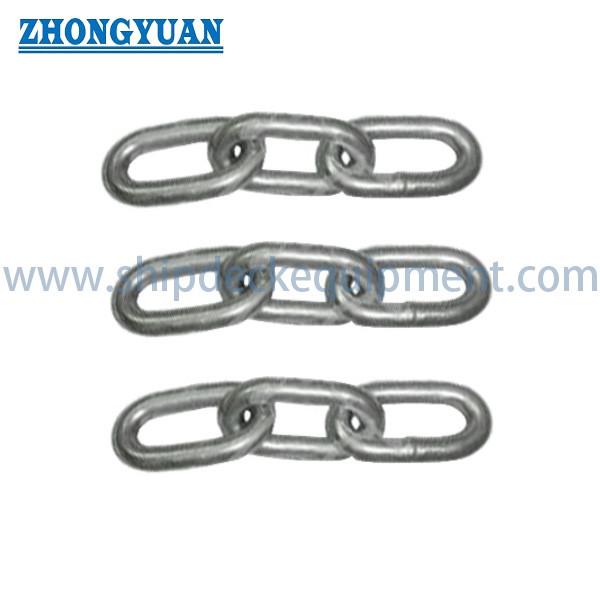

Korean Standard Link Chain
Description:
Korean standard link chain is a sort of link chain manufactured according to Korean standard. It is the round link chain for Korea market.The chain is widely used in industry.There are two kinds of Korean standard link chain: short link and long link. We are able to supply Korean standard link chain made.
Main Technical Specifications:
Main Technical Parameters:
Nominal Size | Material Size | Inside Length | Inside Width | Length Per PC | Weight Per PC | |
m/m | m/m | m/m | m/m | m | kg | |
Short Link | 3 | 3.0 | 23.0 | 5.3 | 30 | 4.50 |
4 | 4.0 | 22.0 | 7.5 | 30 | 9.00 | |
5 | 4.8 | 23.7 | 8.3 | 30 | 12.74 | |
6 | 5.8 | 27.3 | 10.0 | 30 | 18.86 | |
7 | 7.0 | 31.0 | 12.0 | 15 | 14.14 | |
8 | 7.8 | 35.0 | 13.7 | 15 | 17.23 | |
9 | 8.8 | 39.0 | 15.2 | 15 | 22.13 | |
12 | 12.0 | 38.0 | 18.0 | 15 | 45.00 | |
15 | 15.0 | 45.0 | 23.0 | 15 | 75.45 | |
16 | 16.0 | 53.0 | 23.0 | 15 | 76.41 | |
19 | 19.0 | 58.0 | 25.0 | 10 | 78.28 | |
Long Link | 4 | 3.9 | 34.3 | 6.2 | 30 | 7.26 |
4.5 | 4.5 | 44.4 | 9.2 | 30 | 9.46 | |
5 | 4.8 | 45.0 | 11.0 | 30 | 11.31 | |
6 | 6.0 | 47.0 | 12.0 | 30 | 18.00 | |
7 | 6.8 | 50.0 | 11.4 | 15 | 11.19 | |
12 | 12.0 | 50.0 | 18.0 | 15 | 42.00 | |
15 | 14.8 | 64.0 | 23.0 | 15 | 61.44 | |
19 | 19.0 | 75.0 | 25.0 | 10 | 71.00 |
![]() |
