    Galvanized Stud Link Anchor Chain Anchor Chain

    Ask Lasest Price
    Brand Name : Zhongyuan
    Model Number : Standard and Customized
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Price : As per quotation
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    Delivery Time : As per offer
    • Product Details
    • Company Profile

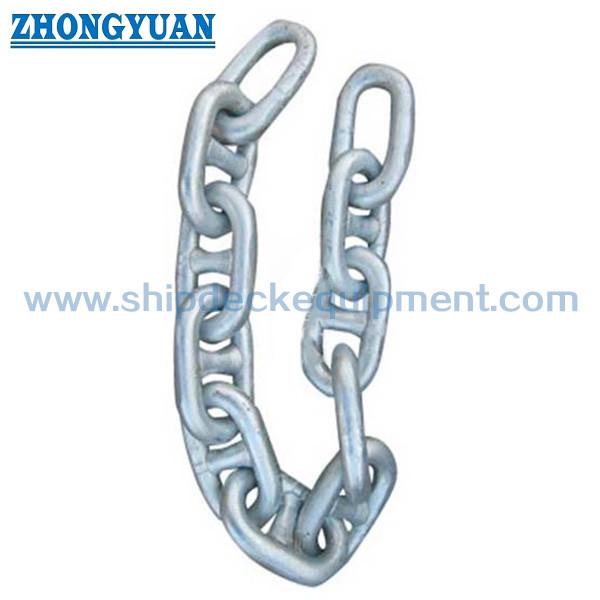

    Galvanized Stud Link Anchor Chain Anchor Chain

    Galvanized Stud Link Anchor Chain Anchor Chain


    Description

    Gavalized stud link anchor chain has grade 2, 3. Grade 3 stud is welded while grade 2 stud does not need to be weled. Gavalized stud link anchor chain is flash butt welded with heat treatment and hot dip gavalized or electric gavalized. All the anchor chain will be proof load tested and sample break load test according to Class Rules before delivery. Hot dip gavalized stud link anchor chain has better anti corrossive performance. The anchor chain accessaries like shackles, swivels, links, etc. are available.


    Main Technical Specifications

    1. Standard: Class Society Rules
    2. Grade: U1, U2, U3, Etc.
    3. Chain Diameter: 9/16 inch to 2 15/16 inch
    4. Length per shot: 25-27.5m, Customized
    5. Construction: Flash butt welded, Heat treatment,
    6. Material Grade: CM490, CM690, 20Mn2,30Mn2
    7. Type: Stud link;
    8. Test: Proof load test, Break load test, Material property test,
    9. Surface treatment: Grit blasting, Hot dip galvanize;
    10. Classification Certificates: RINA, BV, CCS, CR, NK, ABS, DNV, LR and Mill Certificate.

    Main Technical Parameters:

    Diameter Of
    Anchor Chain
    Grade 2Grade 3
    Proof LoadBreaking LoadProof LoadBreaking Load
    InchIbfIbfIbfIbf
    9/1619300270002700038600
    5/823700332003320047500
    11/1628600401004010057300
    3/434000476004760068000
    13/1639800557005570079500
    7/846000644006440091800
    15/16526007370073700105000
    1597008360083600119500
    1672009410094100135000
    1 1/875000105000105000150000
    1 1/583400116500116500167000
    1 1/492200129000129000184000
    1 1/3101500142000142000203000
    1 3/8111000155000155000222000
    1 4/9120500169000169000241000
    1 1/2131000183500183500262000
    1 4/7142000198500198500284000
    1 5/8153000214000214000306000
    1 11/16166500229000229000327000
    1 3/4176000247000247000352000
    1 13/16188500264000264000377000
    1 7/8201000281000281000402000
    1 15/16214000299000299000427000
    2227000318000318000454000
    2 1/16241000337000337000482000
    2 1/8255000357000357000510000
    2 3/16269000377000377000538000
    2 1/4284000396000396000570000
    2 5/16299000418000418000598000
    2 3/8314000440000440000628000
    2 7/16330000462000462000660000
    2 1/2346000484000484000692000
    2 9/16363000507000507000726000
    2 5/8379000530000530000758000
    2 11/16396000554000554000792000
    2 3/4413000578000578000826000
    2 13/16431000603000603000861000
    2 7/8449000628000628000897000
    2 15/16467000654000654000934000

    Drawing of Galvanized 9/16 Inch Stud Link Anchor Chain Heat Treatment Anchor Chain
