10" High Polished Stainless Steel Fixed Chock Ship Towing Equipment

Zhongyuan Ship Machinery Manufacture (Group) Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 10" High Polished Stainless Steel Fixed Chock Ship Towing Equipment from wholesalers

    Buy cheap 10" High Polished Stainless Steel Fixed Chock Ship Towing Equipment from wholesalers
    • Buy cheap 10" High Polished Stainless Steel Fixed Chock Ship Towing Equipment from wholesalers
    • Buy cheap 10" High Polished Stainless Steel Fixed Chock Ship Towing Equipment from wholesalers

    10" High Polished Stainless Steel Fixed Chock Ship Towing Equipment

    Ask Lasest Price
    Brand Name : Zhongyuan
    Model Number : Standard and Customized
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Price : As per quotation
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    Delivery Time : As per offer
    • Product Details
    • Company Profile

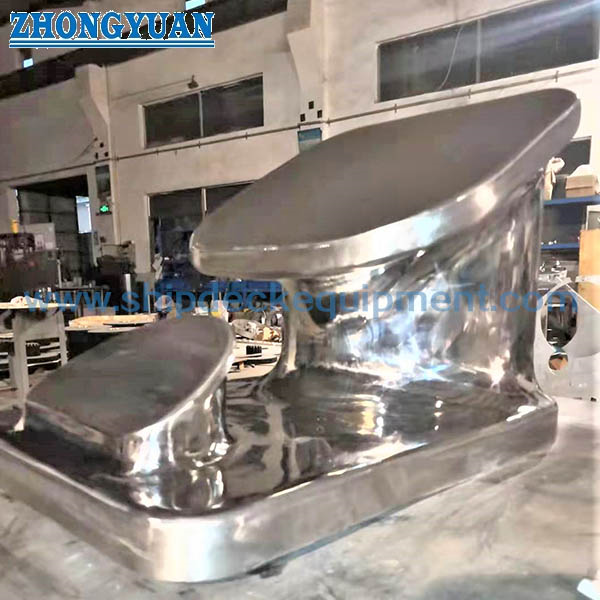

    10" High Polished Stainless Steel Fixed Chock Ship Towing Equipment

    10" High Polished Stainless Steel Fixed Chock Ship Towing Equipment


    Description

    10" high polished stainless steel fixed chock is kind of ship towing equipment. We produce Stainless Steel Fixed Chock for the proper ship towing purpose. They are made of 100% Casting Stainless steel with mirror polished finished surface. Proper curved at the section changed area garmented the force is transmitted smoothly and safely. Silica sol casting technology is used to make sure there is little defects in the casting. And proper heat treatment makes sure good mechanical properties being maintained to sustain heavy pull load.


    Main Technical Specification

    1. Model Type: 10” Stainless Steel Fixed Chock
    2. Dimensions(inches): 10" and as customized
    3. Safe Working Load: 65T and as customized
    4. Material Grade: 100% SUS304, 316 Casting Stainless Steel (Silica Sol casting Technology)
    5. Quality Control: Radiographic Examination (RT), Pull Load Test
    6. Surface treatment: High Polished, Mirror Polished condition, Light Polished;
    7. Certificate: ABS approval & Mill’s inspection and test report with material test certificate.

    Main Technical Parameters:

    Description

    Dimensions

    (mm)

    Weight
    ABCDEFG(KGS)
    10” Stainless Steel Fixed Chock534435370301281263590

    Drawing of 10" High Polished Stainless Steel Fixed Chock Ship Towing Equipment
