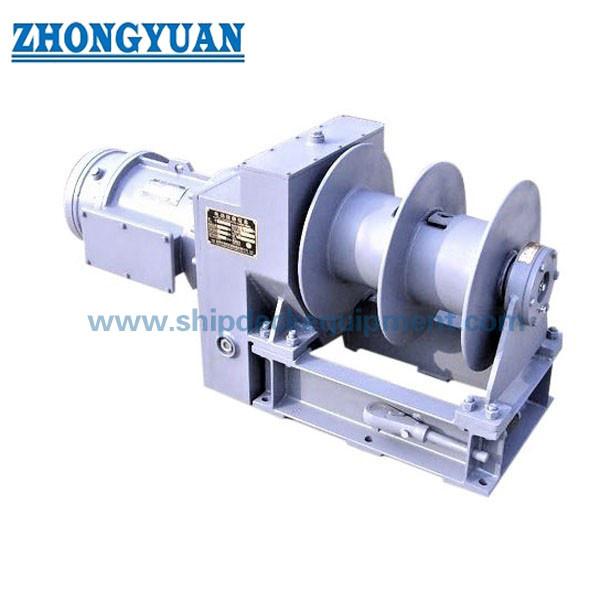

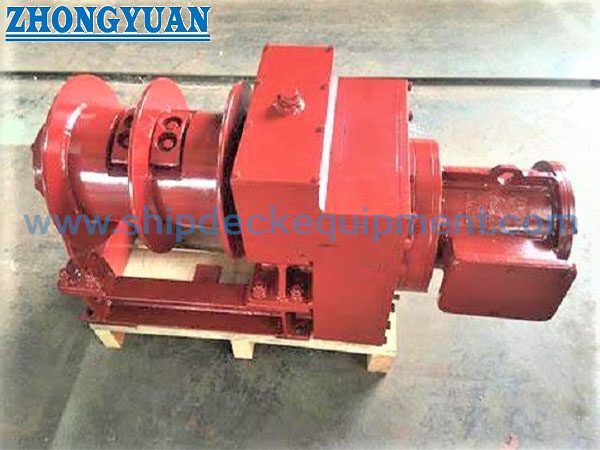

Marine Pilot Ladder Winch ISO7364 Electric Motor Driven 20KN
Description:
ISO 7364 electric motor driven 20 KN marine pilot ladder winch mainly used for handling the aluminum pilot ladders. This winch is satisfied with latest international standard ISO7363, it is of compact structure equipped with electric control switch, it is reliable and easy in operating, the winch is also equipped with manual drive which can operate in case ship’s lost power.
We can produce winches provided with hydraulic, pneumatic, electric or manual drive. Our ladder winch is high versatility, compact structure, small volume, light weight, easy maintenance, driving stably, light noise, with big drum rope capacity to make you a wide range of choice for the lifting height or pulling length, adjustable lifting or pulling speed for different usage environment.
Main Technical Specification:
Main Technical Parameters:
Model | 10KN | 16KN | 20KN |
Drum Load (KN) | 10 | 16 | 20 |
Supporting Load (KN) | 30 | 48 | 60 |
Hoisting Speed(m/min) | 8.09/10 | 9.85/11.64 | 15.3/20.7 |
Winding Wire Layer on Drum | 3 | 3 | 4 |
Wire Capacity(m) | 37 | 50 | 95 |
Wire Rope Size | 6*37-13.0-170-1 | 6*37-13.0-170-1 | 6*37-13.0-170-1 |
Electric Transmission Ratio | 75.43 | 69.48 | 51.19 |
Manual Transmission Ratio | 30.73 | 30.73 | 31.5 |
Total Efficient | 0.83 | 0.858 | 0.85 |

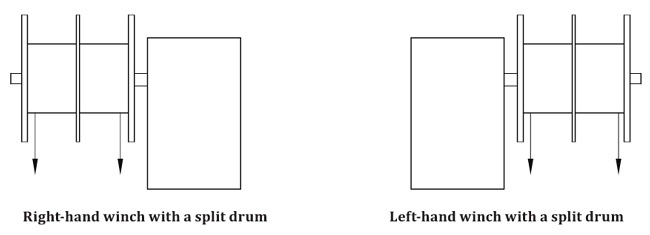

Drawing of ISO7364 Electric Motor Driven 20kn Marine Pilot Ladder Winch Ship Deck Equipment
![]() |
