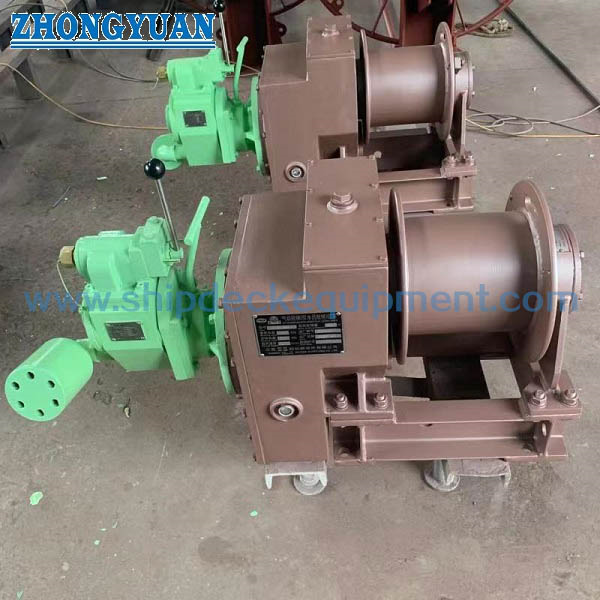

    Marine Accommodation Ladder Winch ISO 7364 Standard, Pneumatic Motor Driven

    Marine Accommodation Ladder Winch ISO 7364 Standard, Pneumatic Motor Driven


    Description:

    ISO 7364 pneumatic motor driven marine accommodation ladder winch mainly used for lowing and hoisting the aluminum accommodation ladders. This winch is satisfied with latest international standard ISO7363, it is of compact structure equipped with explosive proof pneumatic motor, it is reliable and easy in operating, the winch is also equipped with manual drive which can operate in case without compress air.

    We can produce winches provided with hydraulic, pneumatic, electric or manual drive. Our ladder winch is high versatility, compact structure, small volume, light weight, easy maintenance, driving stably, light noise, with big drum rope capacity to make you a wide range of choice for the lifting height or pulling length, adjustable lifting or pulling speed for different usage environment.


    Main Technical Specification:

    1. Standard: ISO 7364:2016
    2. Working Load: 10, 16, 20KN;
    3. Type: Pneumatic Single Drum and split drum;
    4. Speed(m/min):9-20m/Min
    5. Factory Testing: Running test without load, Drum load test, Static test under 1,5 holding load;
    6. Wire Rope Specification: 6*37-13.0-170-1;
    7. Material: Mild Steel,
    8. Power: Pneumatic;
    9. Control: Local Control
    10. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.

    Main Technical Parameters:

    NAMEUNITSPECIFICATION
    Air MotorType/TMYJ4.4-4
    PowerKw4.4
    Rated Revolutionrpm800
    Working PressureMpa0.59
    Air Consumptionm3/min5.2
    Duty Factormin30
    Total Efficiency/0.858
    Manual Transmission Ratio/30.73
    Air Transmission Ratio/75.43
    Wire Rope Size/6*37-13-170-1
    Wire Capacitym40
    Winding Wire Layers on Drum/3
    Hoisting Speedm/min8
    Support LoadKN30
    Drum LoadKN10

    TypeOverall and Mounting Dimensions
    LXBXHCC1En-ØA
    10KN1030X340X5704702353006-Ø17
    12KN1120X380X6804552653206-Ø17
    16KN1130X380X6805302653206-Ø17

    Drawing of ISO 7364 Pneumatic Motor Driven Marine Accommodation Ladder Winch Ship Deck Equipment​
