ISO 17357 Net Type Yokohama Floating Pneumatic Marine Rubber Fender

ISO 17357 Net Type Yokohama Floating Pneumatic Marine Rubber Fender

Description:
ISO 17357 net type Yokohama floating pneumatic marine rubber fenders can play an important role in a ships safe berthing operation. As leading anti- collision anti collision equipment, pneumatic rubber fend has a long and successful history of protecting vessels in mooring operations. They are ideal for permanent and semi-permanent port applications, as well as for offshore ship- to- ship transferring. Our fenders are fast and easy to install, keeping suitable clearance between the hull and the jetty or vessels. Its aim is to minimize potential damage during berthing operations. The se fenders play a critical role in the safe operation of ship berthing.

Net type pneumatic fenders are fitted with a chain-tyre net. The net consists of used tyre connected by a network of horizontal and vertical chains. which adds further protection to the fender body

Main Technical Specifications:

Standard: ISO 17357:2014,
Fender size: Dia.1000 x L 3000m to Dia. 4500 x L 30000m (low pressure), Dia.500 x L 1000m to Dia.4500 x L 12000m (high pressure)
High Pressure Fender Type: Net-type; Net-type and one end with no flange opening and no metal parts; Sling-type;
Low Pressure Fender Type: Clamped end type; Moulded end type.
Safety: Safety valve is equipped as standard or as inquiry;
Initial internal pressure: 7 kPa for low pressure fender, 50 kPa & 80 kPa for high pressure fender;
Test and inspection: Material test of rubber, Dimensional inspection, Air-leakage test, Hydrostatic-pressure test
Fender colour: If not specified, the colour shall be black, As buyer’s inquiry
Identification system: As ISO 17357 standard and buyer’s inquiry;
Certificate: Classification society, Prototype fender test certificate, Commercial fender inspection and test certificate
Can be customized;

Main Technical Parameters:

Pneumatic 50 fender size and performance requirements
Nominal size diameter x length mm	Initial Internal pressure kPa	Guaranteed energy absorption (GEA)	Reaction force at GEA deflection (R)	Hull pressure (Internal pressure) at GEA deflection (P)
Nominal size diameter x length mm	Initial Internal pressure kPa	Minimum value at deflect10n 6 0 土 5 % kj	Tolerance 土 10 % kN	Reference value kPa
500 X 1 000	50	6	64	132
600 X 1 000	50	8	74	126
700 X 1 500	50	17	137	135
1 000 X 1 500	50	32	182	122
1 000 X 2 000	50	45	257	132
1200 X 2 000	50	63	297	126
1 350 X 2 500	50	102	427	130
1 500 X 3 000	so	153	579	132
1 700 X 3 000	50	191	639	128
2 000 X 3 500	50	308	875	128
2 500 X 4 000	50	663	1381	137
2 500 X 5 500	50	943	2 019	148
3 300 X 4 500	50	1175	1884	130
3 300 X 6 500	50	1814	3 015	146
3 300 X 10 600	50	3 067	5 257	158
4 500 X 9 000	50	4 752	5 747	146
4 500 X 12 000	50	6 473	7 984	154
Pneumatic 80 fender size and performance requirements
500 X 1 000	80	8	85	174
600 X 1 000	80	11	98	166
700 X 1 500	80	24	180	177
1 000 X 1 500	80	45	239	160
1 000 X 2 000	80	63	338	174
1200 X 2 000	80	88	390	166
1350 X 2 500	80	142	561	170
1500 X 3 000	80	214	761	174
1 700 X 3 000	80	267	840	168
2 000 X 3 500	80	430	1150	168
2 500 X 4 000	80	925	1815	180
2 500 X 5 500	80	1 317	2 653	195
3 300 X 4 500	80	1640	2 476	171
3 300 X 6 500	80	2 532	3 961	191
3 300 X 10 600	80	4 281	6 907	208
4 500 X 9 000	80	6 633	7 551	192
4 500 X 12 000	80	9 037	10 490	202

Pneumatic 50 fender pressure requirements
Nominal size diameter x length mm	Internal pressure		Minimum endurable pressure		Safety-valve pressure setting	Testing pressure at 0% deflect10n
	at 0% deflection kPa	at 60 % deflection kPa	at 0% deflection kPa	at 60 % deflection kPa	kPa	kPa
500 X 1 000	50	132	300	462	-	200
600 X 1 000	so	126	300	441	-	200
700 X 1 500	50	135	300	473	-	200
1 000 X 1 500	50	122	300	427	-	200
1 000 X 2 000	so	132	300	462	-	200
1200 X 2 000	50	126	300	441	-	200
1 350 X 2 500	so	130	300	455	-	200
1500 X 3 000	so	132	300	462	-	200
1 700 X 3 000	50	128	300	448	-	200
2 000 X 3 500	50	128	300	448	-	200
2 500 X 4 000	50	137	350	480	175	250
2 500 X 5 500	50	148	350	518	175	250
3 300 X 4 500	50	130	350	455	175	250
3 300 X 6 500	50	146	350	511	175	250
3 300 X 10 600	50	158	350	553	175	250
4 500 X 9 000	50	146	350	511	175	250
4 500 X 12 000	so	154	350	539	175	250
Pneumatic 80 fender pressure requirements
500 X 1 000	80	174	480	609	-	250
600 X 1 000	80	166	480	581	-	250
700 X 1 500	80	177	480	620	-	250
1 000 X 1 500	80	160	480	560	-	250
1 000 X 2 000	80	174	480	609	-	250
1200 X 2 000	80	166	480	581	-	250
1 350 X 2 500	80	170	480	595	-	250
1500 X 3 000	80	174	480	609	-	250
1 700 X 3 000	80	168	480	588	-	250
2 000 X 3 500	80	168	480	588	-	250
2 500 X 4 000	80	180	560	630	230	300
2 500 X 5 500	80	195	560	683	230	300
3 300 X 4 500	80	171	560	599	230	300
3 300 X 6 500	80	191	560	669	230	300
3300 X 10 600	80	208	560	728	230	300
4500 X 9 000	80	192	560	672	230	300
4500 X 12 000	80	202	560	707	230	300

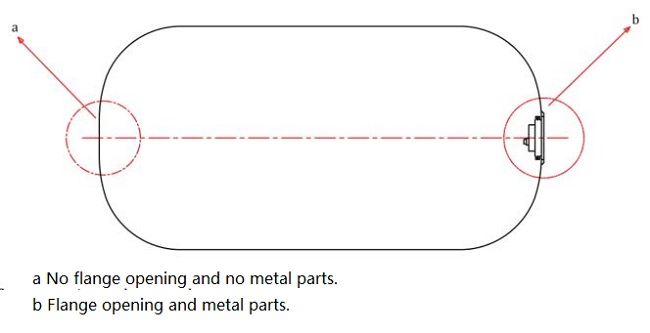

Drawing Of ISO 17357 Net Type Yokohama Floating Pneumatic Marine Rubber Fender
