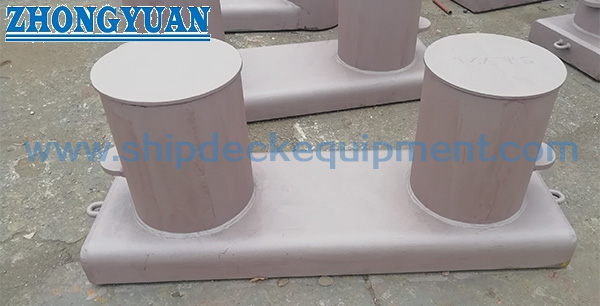

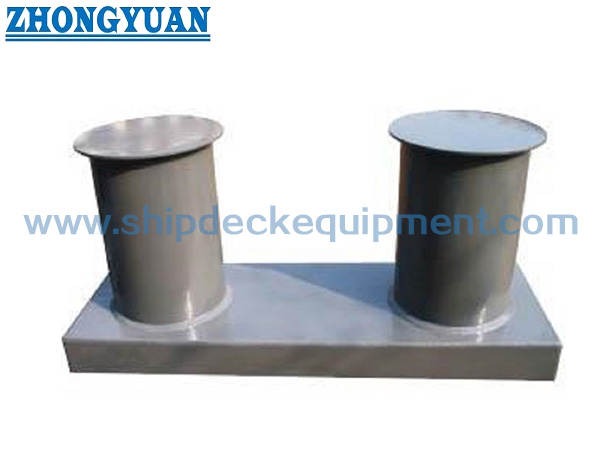

    Welded Fabricated Inclined Double Bitt Bollard GB 556 SH Type With Box Base Ship Mooring Equipment

    Welded Fabricated Inclined Double Bitt Bollard GB 556 SH Type With Box Base Ship Mooring Equipment


    Description:

    GB556-65 welded inclined bollard has two types :DH type and SH type .DH type bollard is single base plate welded oblique post bollard, and SH type is double base plates welded oblique post bollard.SH type and DH type welded inclined bollards are produced in line with standard GB556-65.The design of inclined pillar of this product can help prevent hawser released when the ship sways. Steel wire and hemp rope are applicable to this bollard. Material, dimension, surface coating and other optional factors are determined by customers.


    Main Technical Specification:

    1. Technical Standard: GB 556-65
    2. Nominal Diameters: 75 to 225mm;
    3. Material: Mild Steel; Stainless Steel;
    4. Weight: 5 to 95kg;
    5. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Mirror or Satin Polished, Polished, Galvanized, customized surface treatment available.
    6. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

    Main Technical Parameters:

    Max. Diameter of
    Wire Ropes
    Max. Circle of
    Hemp Ropes
    DD1LBAA1HtWeight
    (kg)
    8.775506531010020516617065
    11.5907590430125296238215711.5
    13.5100100115540160364290240719.2
    15.5125125140660170458380295825.2
    17.5150150165750200525432348833.3
    19.5170175190850235630524394949.2
    22.52002002209502706765644361068.8
    26.022525027011503407656405401295
    Drawing of Welded Fabricated Inclined Double Bitt Bollard GB 556 SH Type With Box Base Ship Mooring Equipment
