CB 3015 Type B Four Steel Rollers Marine Fairlead For Engineering Vessel Ship Towing Equipment
Description
Engineering ship's Fairlead is widely applicable to offshore, engineering barge, dredgers, crane ships, piling boats and other vessels. It is produced according to the latest standard CB*3015. All fairleads obtain the certificates of quality. Type B engineering ship fairleads has 2 vertical rollers,1 bottom & 1 upper horizontal rollers. Please feel free to contact us for more information.
Main Technical Specification:
Main Technical Parameter:
Roller Dia. D | Horizontal Roller Dia. D1 | Applicable Steel Wire Rope Dia. Φ | L | B | H | b | h1 | h2 | l | d |
100 | 85 | 19.5 | 540 | 340 | 240 | 250 | 220 | 50 | 200 | 22 |
150 | 120 | 26 | 760 | 460 | 340 | 340 | 320 | 65 | 290 | 26 |
200 | 150 | 37.5 | 980 | 580 | 440 | 430 | 410 | 80 | 380 | 32 |
250 | 200 | 176 | 1220 | 740 | 550 | 540 | 500 | 110 | 480 | 39 |
300 | 250 | 370 | 1460 | 900 | 675 | 650 | 590 | 135 | 580 | 39 |

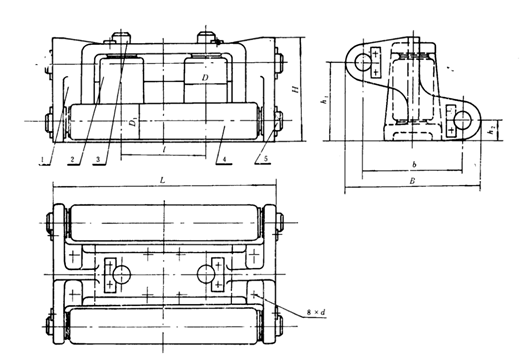

Drawing of CB 3015 Type B Four Steel Rollers Marine Fairlead For Engineering Vessel Ship Towing Equipment
![]() |
