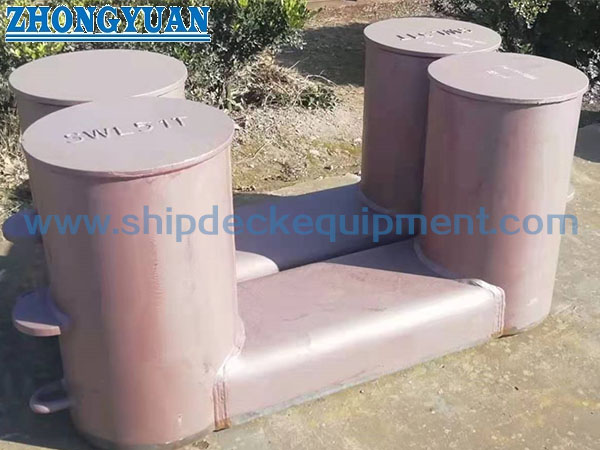

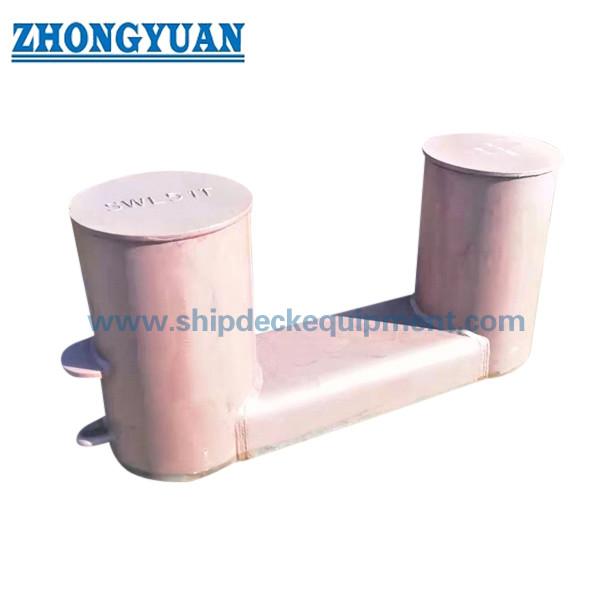

    ISO 13795 Type A Welded Steel Bollards With Compact Base Plate Ship Towing Equipment

    ISO 13795 Type A Welded Steel Bollards With Compact Base Plate Ship Towing Equipment


    Description:

    ISO 13795 type A welded steel bollards with compact base plate ship towing equipment is a double bitt type bollard. It is used for both mooring & towing. The nominal sizes are: 150, 200, 250A, 250B, 300A, 300B, 350A, 350B, 400A, 400B, 450A, 450B, 500A, 500B, 550A, 550B and 600. Base plates is weldable steel plates having a yield point of not less than 235 N/mm 2 ; posts material is weldable steel plates having a yield point of not less than 235 N/mm 2 or equivalent steel tubes. The posts of the bollards is constructed from steel pipes or formed from plate. Fins is installed to keep the ropes as low as possible so as to reduce the loads to the bollard posts from the mooring/towing ropes. An eye plate for tying the stopping-off rope or chain is provided.


    Main Technical Specifications:

    1. Technical Standard: ISO 13795:2020;
    2. SWL Range: 98-1893KN (Towing), 54KN- 1401KN(One Rope Use); 49-948KN (Two Rope Use);
    3. Materials: High Tensile Steel, Stainless steel is available;
    4. Weight: 29 to 1391kg;
    5. Nominal Diameters: 150 to 600mm;
    6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
    7. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

    Main Technical Parameters:

    Nominal size

    Dn

    D1D2D3D4H1H2H3H4bLEtt1t2R
    150165,2185-80330907060155400-8,06640
    200216,3240-1303951157060205500-8,06650
    250A267,4290-1605051359075250630-12,09860
    250B267,4290-1605051359075250630-10,08760
    300A318,53401501856001501108529080030021,516970
    300B318,53401501856001501108529080030012,09970
    350A355,638017020068517513010534089035026,0191180
    350B355,638017022068517513010534089035014,010980
    400A406,44301902307301851451153801 00038028,0201385
    400B406,44301902507301851451153801 00038015,0111185
    450A457,24802102657701951601204251 10041029,0211490
    4508457,24802102857701951601204251 10041014,5111190
    500A508,05302352958302302001504801 25046032,02316100
    500B508,05302353208302302001504801 25046014,51111100
    550A558,85802553309002702001805201 38054031,02216110
    550B558,85802553509002702001805201 38054021,01611110
    600609,46302803659503002002005601 55060033,02316120
    Nominal size
    Dn.

    Welding leg lengthSWLCalculated weight
    (kg)

    For mooring

    purposes

    (Figure-of-eight belay)

    For towing

    purposes

    (Eye splice)

    Z1z2One-rope useTwo-rope use
    (kN)(t)(kN)(t)(kN)(t)
    1503,53,5545,5495,03831029
    2003,53,5828,4656,75791346
    250A5,541561613414131527107
    250B5,5412713108112152291
    300A10,543323430631336562281
    300B10,54186191611635236166
    350A12,554434541843506285431
    350B742442521622285550241
    400A12,5659461521536632106570
    400B853263326927381667322
    450A12775377612628201124712
    4508873823929230448378379
    500A12,589921017577710928154960
    5008854574732633547493465
    550A11,58113111581283126351651 123
    550811,5578180541559280159787
    60011,58140114394897155391931 391

    Drawing of ISO 13795 Type A Welded Steel Bollards With Compact Base Plate Ship Towing Equipment
