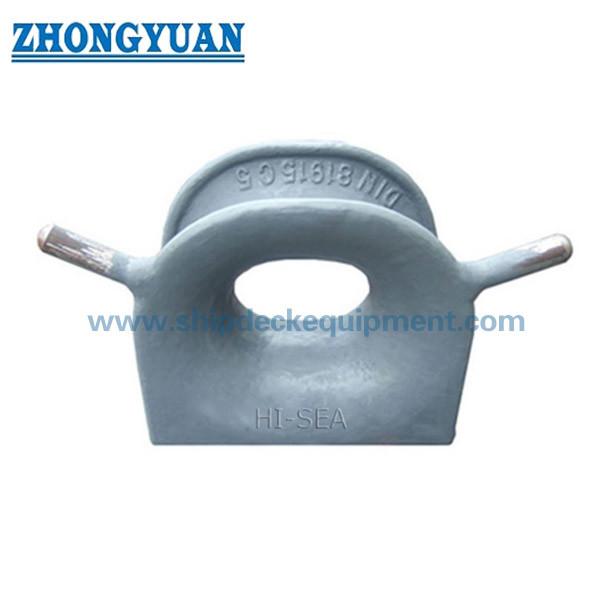

    DIN 81915 Type D Casting Steel Deck Mounted Chock Ship Towing Equipment

    DIN 81915 Type D Casting Steel Deck Mounted Chock Ship Towing Equipment


    Description:

    DIN 81915 complying with German standard has several types, type A, B, C, D and E. Mounted on deck or bulwark, it can limit the position of the rope and meanwhile protect the rope from friction.Type D has 2 horners cmpared with type C


    Main Technical Specification:

    1.Type: Type D;

    2.Materials: Casting C-Mn Steel, Casting Stainless Steel, also can supply special steel for icebreaker.

    3.Technical Standard: DIN 81915:1998-8

    4.Weight:18 to 840kg;

    5.Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.

    6.Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS


    Main Technical Parameter:

    Nominal
    size
    SWL
    KN
    b1b2defh1h2h3l1l2r1r2s1s2w1w2Weight
    (GGG)
    kg
    Weight
    (GS)
    kg

    Weight

    of 2
    Horner

    11025017530125151606520285115R80R45105125901819.51.5
    22031522535158182007025360125R100R57.512616011527292
    33039027540195212507532450140R125R7014720014044483
    55048034045240243008038550160R150R9016825018078854
    88058541550293273609045680180R180R112.51893202251271366
    12120710500-3553044011055840-R220R1352010400270199211-
    20200840595-42033520130651020-R260R1602211500320302325-
    323201100800-550-700150801300-R350R2003520600400770840-


    Drawing of DIN 81915 Type D Casting Steel Deck Mounted Chock Ship Towing Equipment
