    JIS F 2017-1982 Type BC Casting Steel Bulwark Mounted Panama Chocks Ship Mooring Equipment

    JIS F 2017-1982 Type BC Casting Steel Bulwark Mounted Panama Chocks Ship Mooring Equipment


    Description:
    Panama chocks are popular as mooring equipment, which can stand great loads when mooring ships and vessels. Itis mainly used when ship sailing in Panama Canal. We can provide 4 types, under JIS F 2017-1982; type AC, AP are deck mounted and type BC, BP are bulwark mounted chocks.

    Main Technical Specification:

    1. Standard: JIS F 2017-1982
    2. Type: BC;
    3. SWL: 30-100T
    4. Materials: Casting C-Mn Steel, Casting Stainless Steel, also can supply special steel for icebreaker.
    5. Weight: 276 to 422kg;
    6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.
    7. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.

    Main Technical Parameters:

    Nominal

    Size

    LL1L2L3DH1H2H3R1R2R3R4R5KT

    Weight

    Kg

    310310212731652382126844623422311481401951532276
    360360214788704402116881643442321461381921534305
    400400216832750442J66924703462351441311852036344
    450450218886802462186964743482371421321822038385
    500500220940854482207004783502391401301802040422

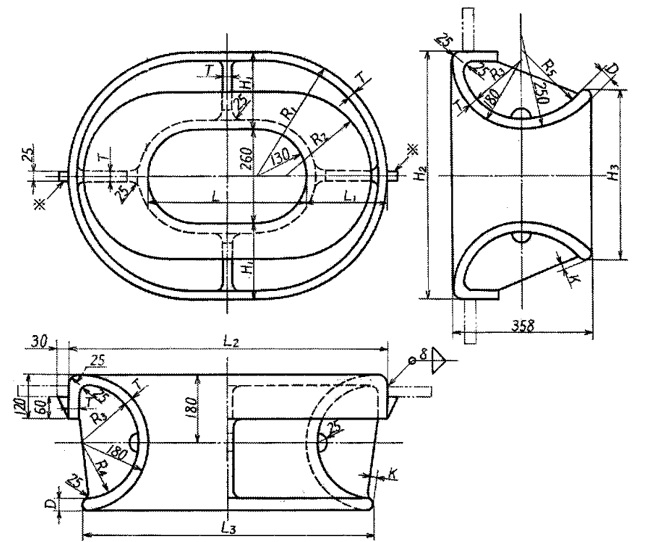

    Drawing of JIS F 2017-1982 Type BC Casting Steel Bulwark Mounted Panama ChocksShip Mooring Equipment
