    Steel Plate Fabricated Recessed Bitts Ship Towing Equipment

    Steel Plate Fabricated Recessed Bitts Ship Towing Equipment


    Description:

    The recessed bitt is a type of ship's towing fitting installed on the side shell of the ship.

    Recessed bitts are normally provided to easily attach the towing lines where the height of the mooring deck is too high.


    Main Technical Specifications:

    1. Standard: ISO 13798:2020; IMO Circular MSC/Circ.1175, Guidance on shipboard towing and mooring equipment
    2. The nominal sizes are 200, 250, 400A and 400B.
    3. Type A: manufactured by steel pipes;
    4. Type B: manufactured by steel plates.
    5. Safe Working Load/Capacity;30 to 120T
    6. Material: C-Mn Steel; Stainless Steel
    7. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, customized surface treatment available.
    8. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

    Main Technical Parameters:

    Nominal
    size
    Dn
    TypeDDlRHTSWLCalculated weight
    kg
    kNt
    200Type A216,32508014010,32943016,5
    Type B210,010,016,1
    250Type A267,430510016012,74915026,7
    Type B260,012,025,7
    400AType A406,448014030012,76877069,7
    Type B410,012,068,0
    4008Type A406,448014033021,4117712099,7
    Type B410,020,096,1

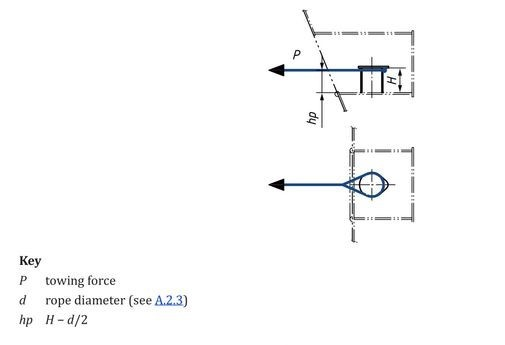

    Diameter of applied ropes for load consideration (Dimensions in Millimetres)
    Nominal size
    Dn
    Rope diameter
    d
    20030
    25035
    400A40
    400860

    Drawing of Steel Plate Fabricated Recessed Bitts Ship Towing Equipment
