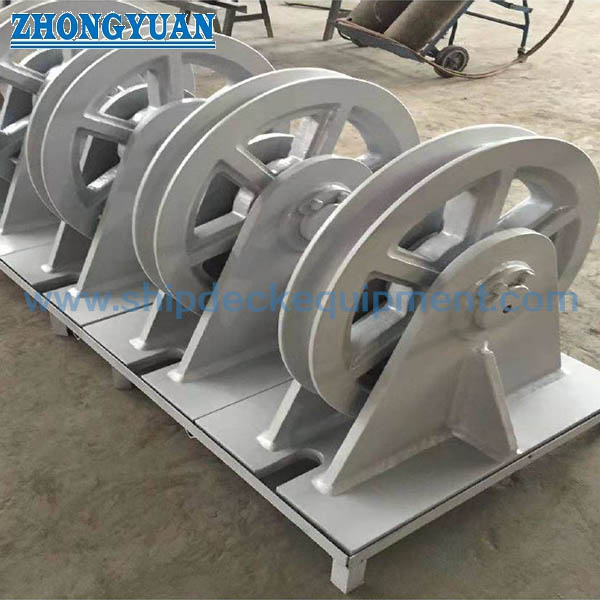

Vertical Guide Sheave Block Ship Towing Equipment
Description
Vertical guide sheave block is designed to guide the steel wire rope and change its direction. It is mainly used on engineering vessel, ferry, special purpose ship, dock. It is used together with winch. Our sheave has good wear (harden surface) and corrosion resistance, It is Self-lubrication, Vibration-absorption.
Main Technical Specifications
Main Technical Parameters:
Steel Wire Rope Dia. (mm) | A (mm) | B (mm) | H (mm) | Φ (mm) |
20 | 280 | 390 | 220 | 340 |
25 | 330 | 480 | 265 | 425 |
32 | 406 | 590 | 340 | 520 |
38 | 362 | 690 | 380 | 600 |
44 | 560 | 815 | 450 | 710 |
52 | 610 | 1010 | 570 | 880 |
60 | 760 | 1100 | 600 | 930 |
68 | 920 | 1150 | 650 | 956 |
76 | 1350 | 1250 | 720 | 1120 |
Drawing of Vertical Guide Sheave Block
![]() |
