    DIN 81915 Type E Casting Steel Marine Deck Mounted Chock Ship Towing Equipment

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

    DIN 81915 Type E Casting Steel Marine Deck Mounted Chock Ship Towing Equipment

    DIN 81915 Type E Casting Steel Marine Deck Mounted Chock Ship Towing Equipment


    Description:

    DIN 81915 complying with German standard has several types, type A, B, C, D and E. Mounted on deck or bulwark, it can limit the position of the rope and meanwhile protect the rope from friction.


    Main Technical Specification:

    1. Type: Type E;

    2. SWL Range: 80-200KN;

    3. Materials: Casting C-Mn Steel, Casting Stainless Steel, also can supply special steel for icebreaker.

    4. Technical Standard: DIN 81915:1998-8

    5. Weight:185 to 540kg;

    6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.

    7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS


    Main Technical Parameter:

    Nominal
    size
    SWL
    kN
    ab3Ceh1l1l3r1r2r3r4S1W1W2Weight
    KG
    880340752130460360680750R180R113R110R29318320225185
    12120350775130470360760800R180R125R100R30528400250300
    202005601 07019065052010201200R260R160R170R42028500320540

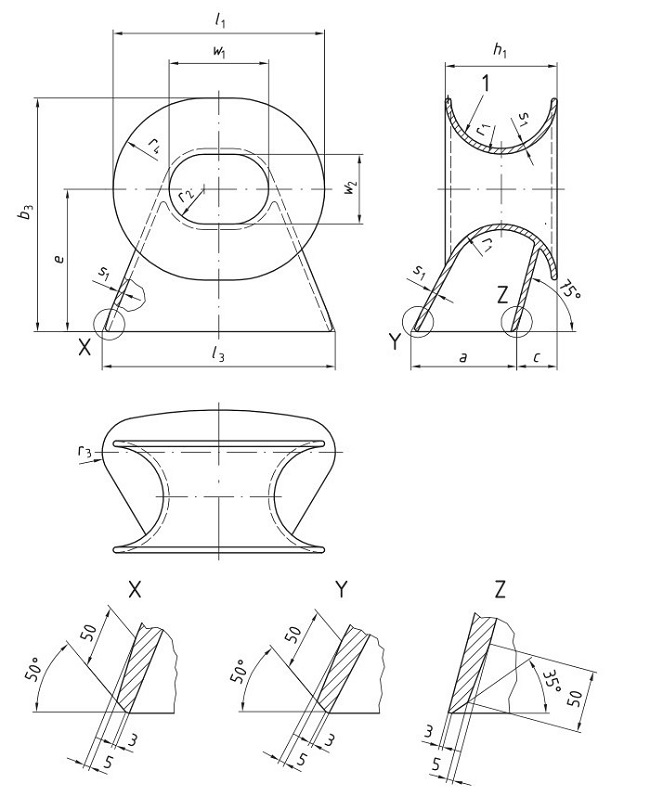

    Drawing of DIN 81915 Type E Casting Steel Marine Deck Mounted Chock Ship Towing Equipment


    Quality DIN 81915 Type E Casting Steel Marine Deck Mounted Chock Ship Towing Equipment for sale
