JIS F 2029 Towing Mooring Brackets Ship Towing Equipment

JIS F 2029 Towing Mooring Brackets Ship Towing Equipment

Description:

A fitting for securing the end link of a chafing chain, consisting of two parallel vertical plates mounted on a base with a sliding bolt passing through them. It is welded on the forcastle deck and used for emergency towing.We make JIS standard towing bracket and also customized towing bracket.

Main Technical Specifications:

Standard: JIS F 2029-1997;
Nominal No.;52-132
Nominal Diameter of Applicable Anchor Chain: 50-132mm
Materials: C-Mn Steel, Mild Steel
Weight: 55 to 723kg;
Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.
Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS

Main Technical Parameters:

Nominal No	Nominal dia. of applicable anchor chain	Base plate							Pin									Weld Leg Length
Nominal No	Nominal dia. of applicable anchor chain	L1	L2	L4	B	B1	B2	t3	D	L	l	l1	l2	l3	t4	h	d1	f	f1
52	50 to 52	425	470	95	70	165	230	12	65	430	80	175	175	135	32	100	13	10	7
56	54 to 56	450	500	100	75	180	250	14	70	455	80	190	185	145	32	110	13	11	7
60	58 to 60	475	540	115	80	195	260	16	75	475	80	200	195	155	32	120	13	12	8
64	62 to 64	500	580	120	85	205	270	16	80	505	80	215	210	170	32	130	13	12	8
68	66 to 68	530	610	125	90	220	300	19	85	525	80	225	220	175	32	140	16	13	9
73	70 to 73	560	660	130	100	235	310	19	90	560	80	245	230	190	32	150	16	14	9
78	76 to 78	600	700	140	105	260	340	22	95	590	80	260	250	200	32	160	16	15	10
84	81 to 84	620	760	150	110	270	360	22	100	615	80	275	260	210	32	170	16	16	10
90	87 to 90	695	810	160	120	295	390	25	110	685	100	300	285	235	40	180	16	17	10
95	92 to 95	725	860	170	130	305	410	25	120	720	100	320	300	245	40	190	19	18	11
102	97 to 102	765	920	185	135	330	440	28	130	745	100	330	315	260	40	205	19	19	11
111	105 to 111	805	1000	200	145	350	470	28	140	790	100	355	335	280	40	220	19	20	11
120	114 to 120	850	1080	220	160	370	510	28	150	845	100	385	360	305	40	240	19	21	11
132	124 to 132	910	1200	240	175	395	560	30	160	905	100	415	385	330	40	260	19	22	11

Nominal No	Nominal dia. of applicable anchor chain	Eye plate							Pin support plate			Stopper Pin	Calculated Mass (kg)
Nominal No	Nominal dia. of applicable anchor chain	L3	H	D1	D3	R	t	t1	D2	S	e	l4	Calculated Mass (kg)
52	50 to 52	415	130	70	160	95	22	14	72	245	15	115	55
56	54 to 56	450	140	75	170	100	25	14	77	255	15	120	70
60	58 to 60	480	150	80	180	105	25	16	82	265	15	130	83
64	62 to 64	510	160	85	190	110	28	16	87	280	15	135	99
68	66 to 68	545	170	90	200	120	28	19	92	290	18	145	121
73	70 to 73	585	180	95	220	130	30	19	97	305	18	150	144
78	76 to 78	625	195	100	230	135	32	22	102	320	18	160	180
84	81 to 84	670	210	105	250	145	35	22	107	330	18	165	219
90	87 to 90	720	225	115	270	160	38	25	117	375	18	180	280
95	92 to 95	760	235	120	280	170	38	28	127	390	21	190	321
102	97 to 102	815	255	135	300	180	40	28	137	405	21	205	386
111	105 to 111	890	275	145	330	190	45	28	147	425	21	215	465
120	114 to 120	960	300	155	350	205	50	30	157	450	21	230	586
132	124 to 132	1050	330	165	390	225	50	35	167	480	21	245	723

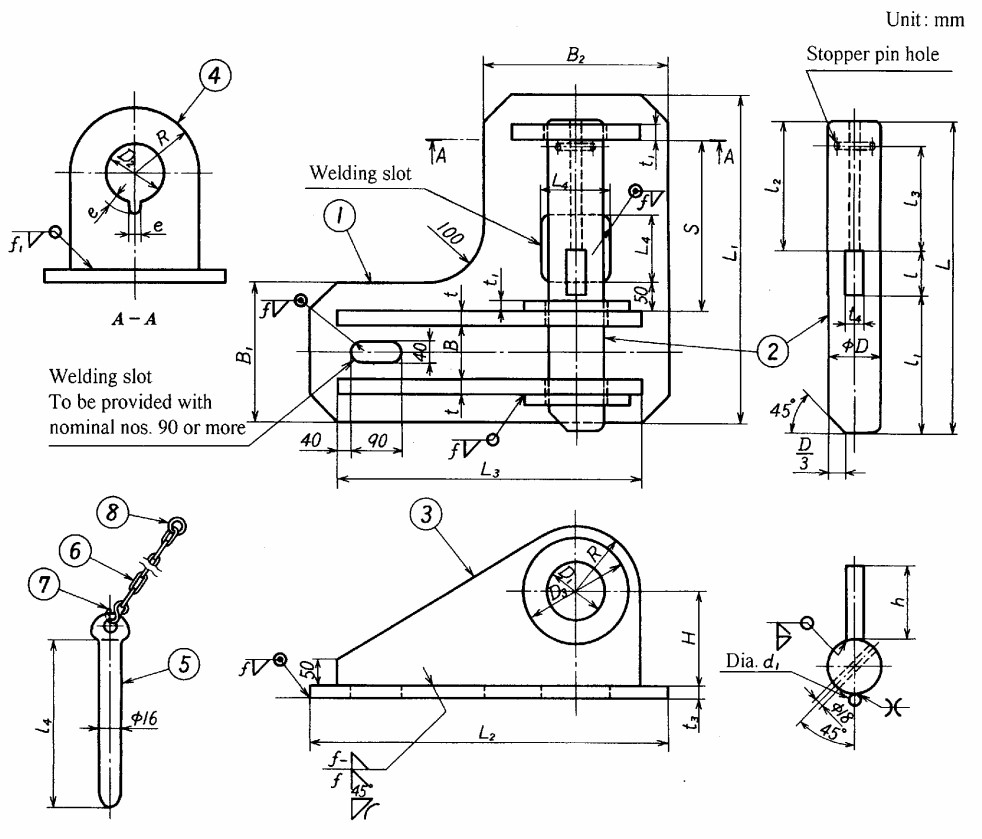

Drawing of JIS F 2029 Towing Mooring Brackets Ship Towing Equipment
