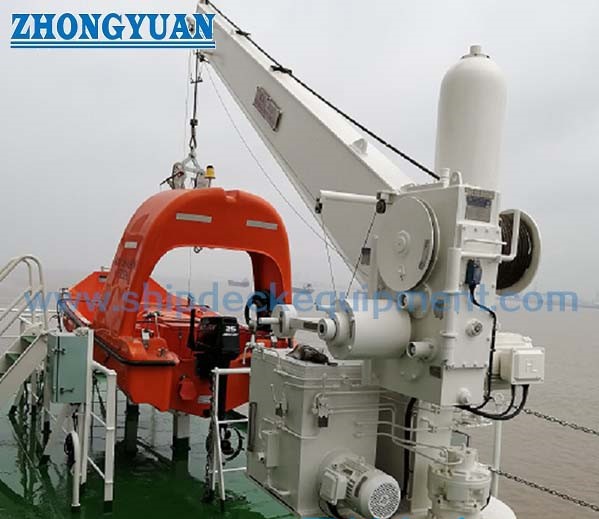

14kN Fixed Arm Slewing Type Rescue Boat Davit Ship Life Saving Equipment

Description:
1-1 The davit is manufactured and tested under the approval of Classification Society in compliance with the requirements of MSC.47(66)----1974 SOLAS Amendments and MSC.48(66)----International LSA.
1-2 The davit is a Single arm slewing type davit and it lowers the boat on the water by the help of its own weight.
1-3The davit is a hydraulic slewing type davit and it would be slewed by accumulator or manual pump driven in case of power failure.
1-4 The boat is lowered by means of remote control, that the crew can release and stop the hand brake of the winch from inside of the boat via wire connection to the brake arm and wire spool on the winch. Alternatively the crew can operate the hand brake on the deck.
1-5 A permanently mounted motor on the winch is used for hoisting the boat/raft with 6(six) persons back to the stowed position.
1-6 The winch drives wire drums by means of motor through the reduction spur gears and equipped with centrifugal speed limiting device, manual lowering brake.
1-7 The inspections and tests of davit appliances are in accordance with the IMO MSC.81(70).

Specification

1. Scope of our supply of MAKER:

2. Scope of our supply of YARD:

3. Painting method

Surface preparation: Shot blasting to Sa2.5
