    SMIT Bracket Towing Bracket Ship Towing Equipment

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

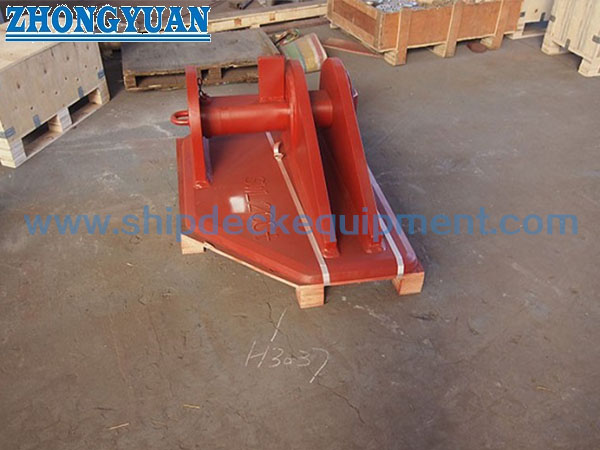

    SMIT Bracket Towing Bracket Ship Towing Equipment

    SMIT Bracket Towing Bracket Ship Towing Equipment


    Description:

    A fitting for securing the end link of a chafing chain, consisting of two parallel vertical plates mounted on a base with a sliding bolt passing through them. It is welded on the forecastle deck and used for emergency towing.


    Main Technical Specifications:

    1. Nominal No.;54, 76, 84,95
    2. Materials: C-Mn Steel, Mild Steel, High Tensile Steel, Forging Alloy Steel.
    3. Weight: 195 to 760kg;
    4. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.
    5. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS

    Main Technical Parameters:

    Chain Nominal Dia.
    (mm}
    ABCDEFHsWeight(kg)SWL(KN)MBL(KN)
    54720650115751002053011819510002000
    769008001601101502403017039020004000
    8410189051701201602733521056025005000
    9511209401951351702904027676030006570

    Drawing of SMIT Bracket Towing Bracket Ship Towing Equipment
