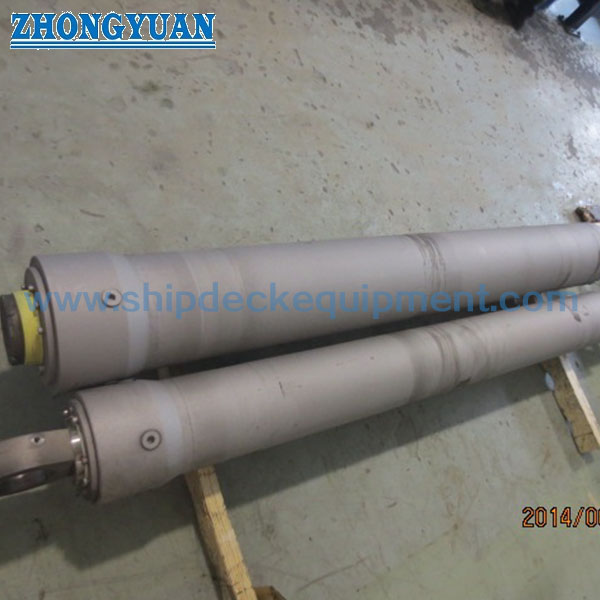

Ship Watertight Door Hydraulic Cylinder

Description

Ship watertight door hydraulic cylinder uses seamless tube, selects different tube thickness according to work pressure, the cylinder has the feature of high precision of bore size, light weight, simple structure, various connection method, constant low speed and stable cushioning function, normal work pressure 7~ 14Mpa, widely used for machine, light industry textile, plastic injection agriculture machine.

Main Parts of Hydraulic Cylinder

1. Cylinder barrel

The main function of the cylinder body is to hold cylinder pressure. The cylinder barrel is mostly made from a seamless tube. The cylinder barrel is ground and honed internally with a typical surface finish of 4 to 16 microinch. The piston reciprocates in the cylinder.

2. Cylinder head

The main function of the head is to enclose the pressure chamber from the other end. The head contains an integrated rod sealing arrangement or the option to accept a seal gland. The head is connected to the body by means of threading, bolts, or tie rod. A static seal is used in between head and barrel.

3. Cylinder base or cap

The main function of the cap is to enclose the pressure chamber at one end. The cap is connected to the body by means of welding, threading, bolts, or tie rod. Caps also perform as cylinder mounting components. Cap size is determined based on the bending stress. A static seal is used in between cap and barrel (except welded construction).

4. Piston

The main function of the piston is to separate the pressure zones inside the barrel. The piston is machined with grooves to fit elastomeric or metal seals and bearing elements. These seals can be single acting or double acting. The difference in pressure between the two sides of the piston causes the cylinder to extend and retract. The piston is attached with the piston rod by means of threads, bolts, or nuts to transfer the linear motion.

Hydraulic Cylinder Parameters:

Drawing of Ship Watertight Door Hydraulic Cylinder​

Founded in the 1990s, Zhongyuan Ship Machinery Manufacture (Group) Co., Ltd. comprises four factories and one exporting company,
employing over 300 personnel with 20 experienced technicians & engineers. Our export trade company facilitates seamless delivery of
cargo worldwide.

Our factories are certified with ISO 9001, OHSAS 18001, ISO 14001, and ISO 45001, as well as possessing Type Approval certificates
from DNV, LR, BV, and ABS. Additionally, we hold Works Approval certificates from ABS, DNV, LR, and BV, various class approved
WPS & qualified welders. All our products are eligible for certification from IACS classification societies such as DNV, ABS, LR, BV,
CCS, RINA, KR, NK, IRS, and RMRS. Our factories have secured two national patents, one for a steel plate rolling machine and two
utility model patents.

We manufacture Deck Equipment & Machinery, Mooring & Towing Equipment, Deck Outfitting, Hydraulic Cylinder, Hydraulic Power
Unit, Shaft, Rudder Stock, Shaft and Rudder system, Marine Hardware, Lifting & Lashing Equipment, Hoisting & Rigging.

We distribute Lifeboat, Rescue Boat, Boat Launching Appliance and Davit, Life-saving Equipment and Facilities, Fire-fighting
equipment, Rubber Fender, Rubber Packing, Pumps, Valves, Pipe Fittings, Multi-core Pipes and accessories, Steel Wire Rope,
Mooring Rope, Rope Nets, Anchors & Anchor Chains, Various Chains;

We pride ourselves on manufacturing & delivering reliable, high-quality products at competitive prices to our esteemed clients.

Our major equipment and facilities include various CNC machining centers with a range of CNC machine tools & CNC cutting
machines, boring and milling machines, hydraulic press machinery, plate rolling machines, welding robots, welding equipment, and
shot blasting machines, dust free paint workshop, etc.
