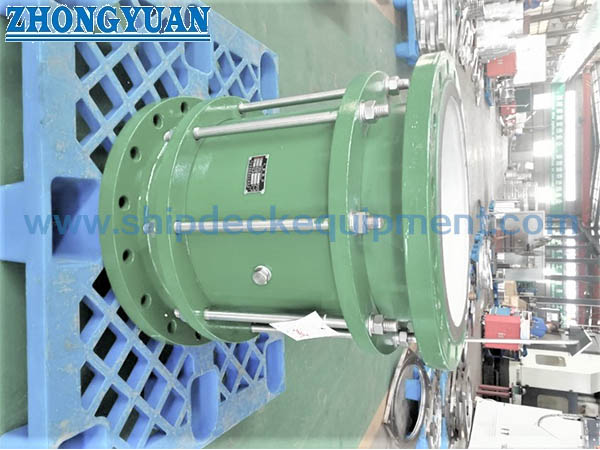

Flange Type Pipe Expansion Joint

Description:

Flange type expansion joint is for connection the pipe line to absorb expansion in the pipe line due to the temperature and ship movement etc.. It has different standard and various material and design type.

Main Technical Specification

1. Standard: GB, EN
2. Material: SUS 304, 316L, Carbon Steel
3. Nominal Diameter: DN25 - DN2000mm
4. Nominal Pressure: 0.2Mpa - 10Mpa
5. Working Temperature: -20 to +400 °C
6. Application: Fire Line, Oil Line, Water Line, Gas Line, Smoke Line
7. With Fire Proof Certificate (Class Society Type Approval)
8. Certificate: Class Society Type Approval, EC-MED Type Approval, ABS, DNV-GL, KR, NK, LR, RINA, BV, CCS, IRS

Founded in the 1990s, Zhongyuan Ship Machinery Manufacture (Group) Co., Ltd. comprises four factories and one exporting company,
employing over 300 personnel with 20 experienced technicians & engineers. Our export trade company facilitates seamless delivery of
cargo worldwide.

Our factories are certified with ISO 9001, OHSAS 18001, ISO 14001, and ISO 45001, as well as possessing Type Approval certificates
from DNV, LR, BV, and ABS. Additionally, we hold Works Approval certificates from ABS, DNV, LR, and BV, various class approved
WPS & qualified welders. All our products are eligible for certification from IACS classification societies such as DNV, ABS, LR, BV,
CCS, RINA, KR, NK, IRS, and RMRS. Our factories have secured two national patents, one for a steel plate rolling machine and two
utility model patents.

We manufacture Deck Equipment & Machinery, Mooring & Towing Equipment, Deck Outfitting, Hydraulic Cylinder, Hydraulic Power
Unit, Shaft, Rudder Stock, Shaft and Rudder system, Marine Hardware, Lifting & Lashing Equipment, Hoisting & Rigging.

We distribute Lifeboat, Rescue Boat, Boat Launching Appliance and Davit, Life-saving Equipment and Facilities, Fire-fighting
equipment, Rubber Fender, Rubber Packing, Pumps, Valves, Pipe Fittings, Multi-core Pipes and accessories, Steel Wire Rope,
Mooring Rope, Rope Nets, Anchors & Anchor Chains, Various Chains;

We pride ourselves on manufacturing & delivering reliable, high-quality products at competitive prices to our esteemed clients.

Our major equipment and facilities include various CNC machining centers with a range of CNC machine tools & CNC cutting
machines, boring and milling machines, hydraulic press machinery, plate rolling machines, welding robots, welding equipment, and
shot blasting machines, dust free paint workshop, etc.
