    Both Sides Opening Quick Action High Pressure Watertight Door Marine Outfitting

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

    Both Sides Opening Quick Action High Pressure Watertight Door Marine Outfitting

    Both Sides Opening Quick Action High Pressure Watertight Door


    Description:

    Both sides opening quick action high pressure watertight door is normally used for engine room steering gear room and other watertight compartments. It is also compliance with fire proof requirements, The withstanding water pressure is 0.1Mpa.And fire grade can be A60. It can be opened from both side, so it is applicable to be used on the escape route.


    Main Technical Specifications:

    1. Standard: CB/T 38572;
    2. Material: Mild Steel, Stainless Steel,
    3. Test: Hydraulic Pressure Test,
    4. Dimension: Customized, As client’s drawing, As Standard
    5. Application Type: Watertight,
    6. Leaf Type: Single Leaf,
    7. Application Location: Accommodation, Cargo Hold, Bulkhead, Boundary
    8. Open Type: Sliding, Hinged, Hand Wheel Quick Operate, Lever Operate, Dog Handle, etc.
    9. Power resource: Manual,
    10. Closing Device: Anti-Piracy
    11. Classification Certificates:Type Approval, EC MED Type Approval, CCS, NK, BV, ABS, DNV GL, LR, KR, IRS, RS, Etc.

    Main Technical Parameters:

    TypeNominal size
    BxLxR100mm
    Cutout in steel wall
    B1 xL1 xR112mm
    Outline size
    B2xL2xR140mm
    QAWT1700x1500724x1524780x1580
    QAWT2700x1400724x1424780x1480
    QAWT3600x1500624x1524680x1580
    QAWT4600x1400624x1424680x1480

    Range of products (not limited to)

    1. Hydraulic Watertight Sliding Door (Low Sill)

    2. Flush Watertight Door CB672-76

    3. Hydraulic Watertight Hinged Door

    4. Quick Action High Pressure Door

    5. High Pressure Watertight Door

    6. Hydraulic Hinged Watertight Steel boor (Crew Door)

    7. Hydraulic Hinged Weathertight Steel Door (Passenger Door)

    8. Watertight Bulkhead Door

    9. Quick Action Watertight Steel Door

    10. Quick Action Weathertight Steel Door

    11. Single Handle Watertight Steel Door

    12. Hydraulic Watertight Sliding Door CB/T3007-2000

    13. Hydraulic Double-leaf Watertight Hinged Door

    14. Pilot Watertight Door

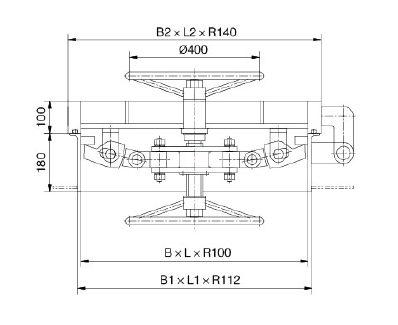

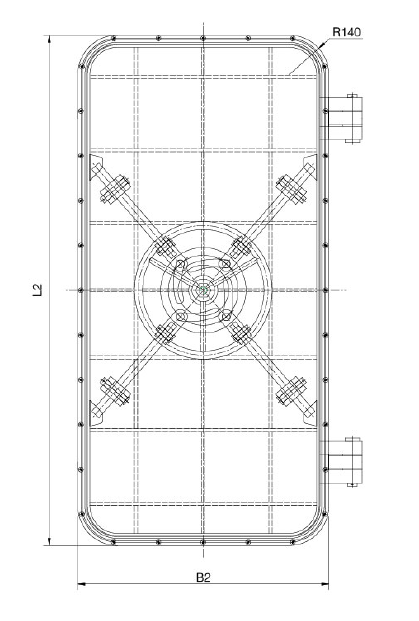

    Drawing of Both Sides Opening Quick Action High Pressure Watertight Door Marine Outfitting
