Brand Name : | Zhongyuan |
Certification : | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
Model Number : | Standard and Customized |
Price : | As per quotation |
Delivery Time : | As per offer |
Payment Terms : | TT, L/C, Etc. |
Supply Ability : | Satisfy clients needs |

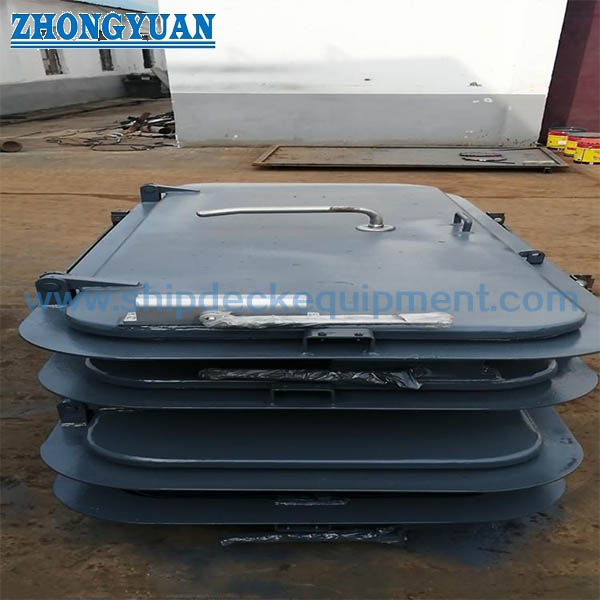

Single Lever Quick Action Hinged Steel Weathertight Door
Description:
Single lever quick action hinged steel weathertight door is Used for the doorway of superstructure above freeboard deck or deck house. It can be installed on the postion 1 and 2 according to loadline requirement.Hose test is to be carried our before delviery from the factory. IACS class certificates are available.
Main technical Specification:
Main Technical Parameters:
No. | Nominal size LxBxR100 | Cutout L1 x B1 x R150 | Outline size L2 x B2 x R200 | Leaf plate thickness mm |
1 | 1000x600 | 1100x700 | 1200x800 | 8 |
2 | 1200x600 | 1300x700 | 1400x800 | |
3 | 1400x600 | 1500x 700 | 1600x800 | |
4 | 1400x700 | 1500x800 | 1600x900 | |
5 | 1500x600 | 1600x700 | 1700x800 | |
6 | 1500x700 | 1600x800 | 1700x900 | |
7 | 1600x600 | 1700x 700 | 1800x800 | |
8 | 1600x700 | 1700x800 | 1800x900 |
Drawing of Single Lever Quick Action Hinged Steel Weathertight Door Marine Outfitting
![]() |
