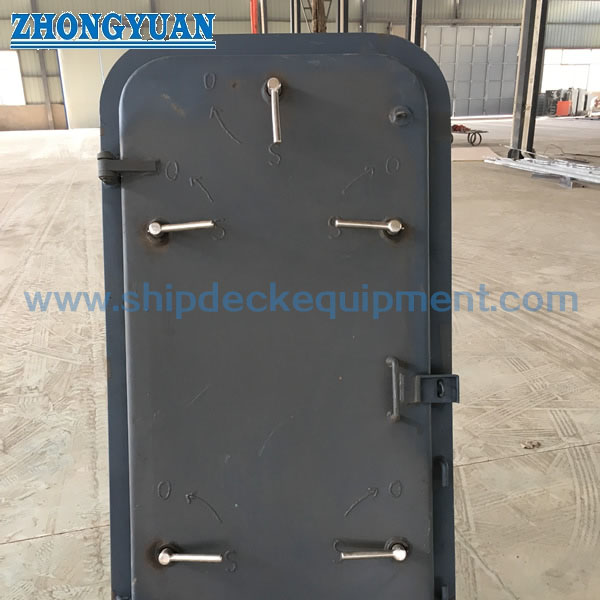

Steel Weathertight Single Leaf Doors with Dogs Both Side Opening

Description:

GB/T 3477 Type A steel weathertight single leaf doors with dogs both side opening is used for the doorway of level 1 superstructure above freeboard deck or deck house. It is applicable in the range of 0.1-0.7 length of ship deck house and superstructures. It can be opened from both sides. The material can be mild steel or stainless steel. Hose test 0.2Bar at 1.5m distance with 12mm nozzle.

Main Technical Specifications:

1. Standard: GB/T 3477-2008

2. Material: Mild Steel, Stainless Steel;

3. Test: Hose Test, Chalk Test,

4. Dimension: Customized, As client’s drawing, As Standard

5. Application Type: Weathertight,

6. Leaf Type: Single Leaf,

7. Application Location: Accommodation, Deck House, Forecastle, Bulkhead, Boundary

8. Open Type: Hinged, Dogs,

10. Closing Device: Anti-Piracy

11. Classification Certificates: CCS, NK, BV, ABS, DNV GL, LR, KR, IRS, RS, Etc.

Main Technical Parameters:

Drawing of Steel Weathertight Single Leaf Doors with Dogs Both Side Opening Marine Outfitting
