    Sound Proof Stainless Steel Bridge Wheelhouse Sliding Door Marine Outfitting

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

    Sound Proof Stainless Steel Bridge Wheelhouse Sliding Door Marine Outfitting

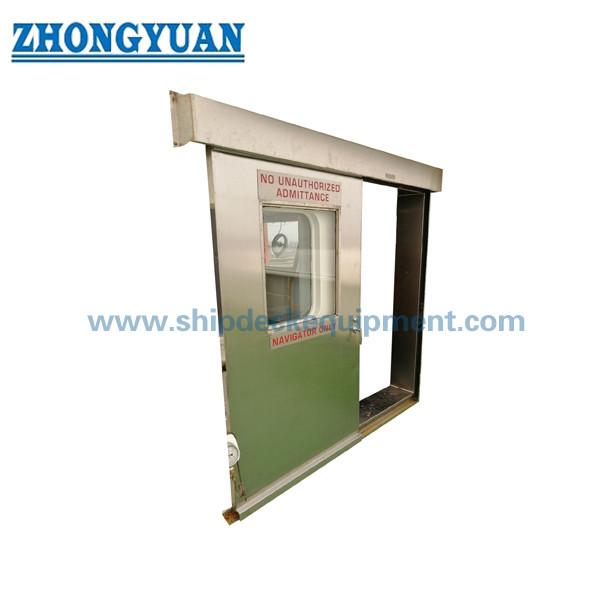

    Sound Proof Stainless Steel Bridge Wheelhouse Sliding Door


    Description:

    Sound Proof Stainless Steel Bridge Wheelhouse Sliding Door is made in accordance with ISO standard. It has merits of low noise, fine appearance and light weight. Besides, this door is space-saving. This door can be used for various kinds of ships. It should be installed on the upper structure of ships, especially suitable for wheelhouse. This door plate can be made of stainless steel, aluminum and GRP. Customization is available to some extent.


    Main Technical Specifications:

    1. Standard: Standard CBM 2055-82, ISO Standard

    2. Material: Stainless Steel, Aluminium,

    3. Test: Hose Test, Air Test, as applicable

    4. Dimension: Customized, As client’s drawing, As Standard

    5. Application Type: Weathertight,

    6. Application Location: Wheelhouse, Bridge

    7. Open Type: Sliding,

    8. Power resource: Manual,

    9. Closing Device: Anti-Piracy

    10. Classification Certificates:Type Approval, EC MED Type Approval, CCS, NK, BV, ABS, DNV GL, LR, KR, IRS, RS, Etc.


    Main Technical Parameters:

    TypeNominal size
    L×B
    Cutout in steel wall
    L1×B1
    Outline size
    L2×B2

    Lining

    thickness

    T

    Frame depth DOpeningWeight
    kg
    ABC
    A
    B
    C
    1700x7501765x8152250x1860

    up to buyer's

    choice

    T+50Left open
    Right open
    564240
    1700x9001765x9652250x2160624846
    1800 x 9001865x9652350x2160665250
    1800x10001865x10652350x2360725856

    Drawing of Sound Proof Stainless Steel Bridge Wheelhouse Sliding Door Marine Outfitting
