    JIS F 2014 Form DF DS Closed Type 3 Rollers Shipside Fairlead Ship Mooring Equipment

    JIS F 2014 Form DF DS Closed Type 3 Rollers Shipside Fairlead Ship Mooring Equipment


    Description:

    Closed fairlead roller type DF DS can be called closed three fairlead rollers. The fairlead is installed on the ship decks and leads the ropes' direction. Besides, this product are certified by IACS. And we can produce regular fairleads for your requirement. If you are interested in our products, please no hesitate to contact us.


    Main Technical Specification:

    1. Technical Standard: JIS F 2014-1987

    2. Type: DF&DS CLOSED TYPE

    3. Roller Diameters: 150~450mm

    4. Roller No.: 3 Rollers

    5. Roller Weight:53.8~650kg

    6. Materials: Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron

    7. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.

    8. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

    9. Can be Customized


    Main Technical Parameter:

    Nominal Dia.DLII1I2
    1501501440420300
    2002001720530330
    2502502070640395
    3003002360750430
    3503502750860515
    4004003070970565
    45045034401080640

    Nominal
    Dia.
    RollerBush
    DD1D2Hhh1h2Min.
    t
    rr1r2t8t9D3h1t1
    1501502402201605850510452017181061508
    200200310280190676061055242120IO76608.5
    2502503803402207270610652825251087709
    30030044040024086757127532283012102759.5
    350350500455260958081685363032161178010
    4004005605202801058581990404035191288510.S
    4504506205802901059081990454535191419010.5
    Nominal
    Dia.
    WasherPinSeat & Support
    D5D6t.2dd 1t3ll1l2l3H1H2H3LL1L2
    15010 0627607010217461011016721902007550
    200120778759010263551251519722302307550
    25014087985105122956014520229326527010075
    30018010210100125143316516025249332030010075
    350220117111151401635165175252693350350no90
    400260128121 25155183817019030291438040011090
    450280141121381702041075190303004410450125100
    Nominal
    Dia.
    Seat & SupportSet Screw for BushCheck Piece
    L3D7D8Bt4t5r5r6W1W2Bolt
    Nominal
    Dia.
    Bolt
    Length
    No.abC
    1507510062220108704087M6124254524
    200751207728014107040108M6124286238
    2501001408734014108040108MS204358550
    300100180102400181480601310M8204409560
    35012522017从50181490601310MS2044610570
    4001252601285202016100601412MS2045512580
    4501502801415802516110701412MS2046513590

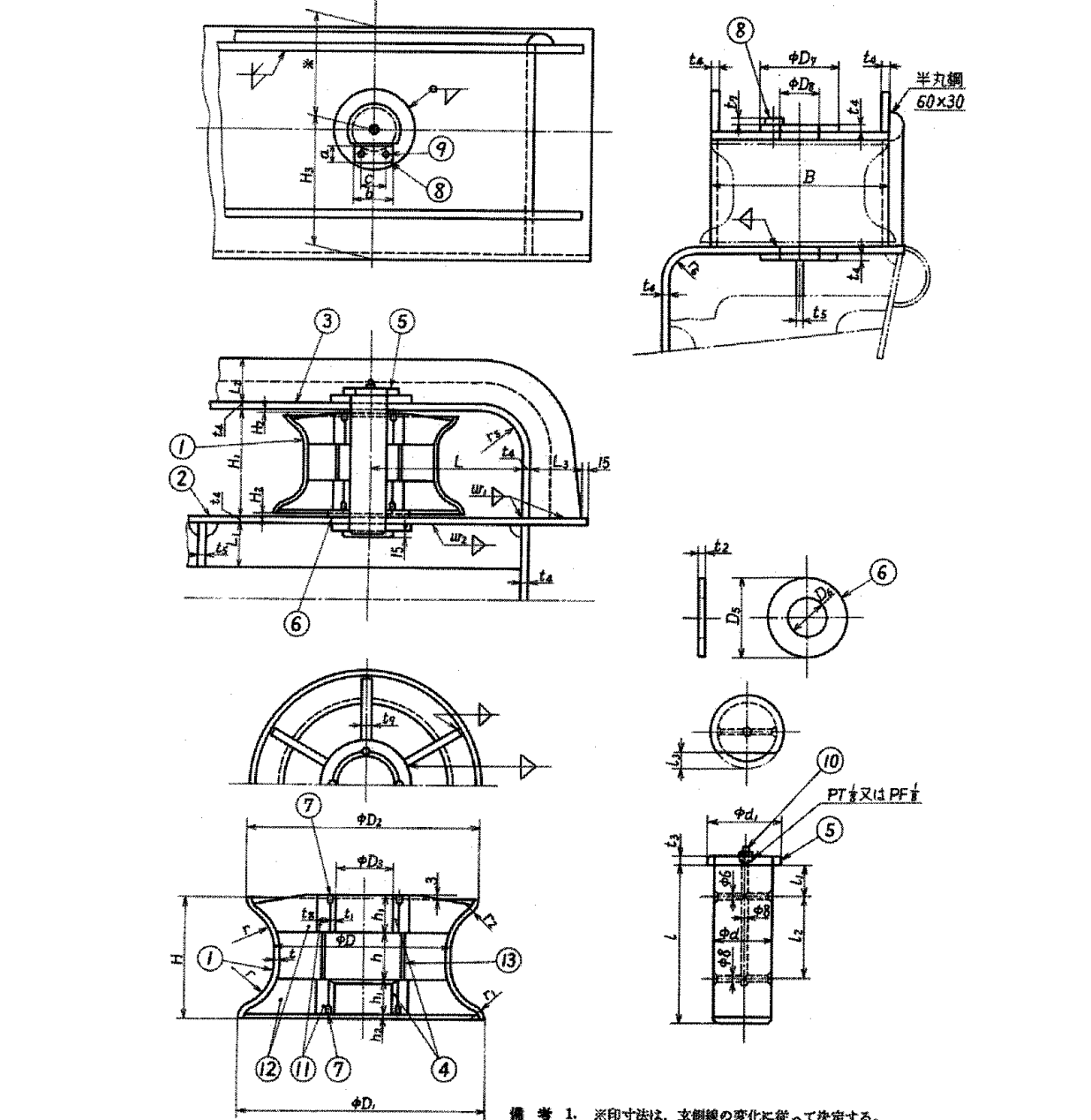

    Drawings of JIS F 2014 Form DF DS Closed Type 3 Rollers Shipside Fairlead Ship Mooring Equipment
