    CB/T 3062 Type A 3 Tube Rollers Universal Fairleads Ship Mooring Equipment

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

    CB/T 3062 Type A 3 Tube Rollers Universal Fairleads Ship Mooring Equipment

    CB/T 3062 Type A 3 Tube Rollers Universal Fairleads Ship Mooring Equipment


    Description

    CB/T 3062-2011 type A three rollers universal fairleads consists 2 vertical & 1 lower horizontal rollers. It is used to guide mooring ropes from 3 directions. It is usually located on upper deck. It reduces the abrasion of mooring ropes for the rollers fixed around the fairlead. CB/T 3062-2011 standard has type A, B, C. The total number of rollers ranges from 3 to 5.


    Main Technical Specification:

    1. Model Type: Type A
    2. Materials: C-Mn Steel, Mild Steel, Stainless Steel
    3. Roller No.: 3 Rollers
    4. Steel Cable Diameters: 14~44mm,
    5. Nylon Rope Diameters: 36~100mm
    6. Weight: 112kg~2122kg
    7. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
    8. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.

    Main Technical Parameter:

    Nominal
    Size
    Steel Wire
    Dia.
    Nylon Rope
    Dia.
    SWL
    (KN)
    BB1B2DHH1LL1L2L3tWeight
    (kg)
    10014365423819410810250833064441630054410112
    12016407028023212812155236072845632060812169
    14018458930425013814060640577648033064614227
    150207011034628815815267043588054037073016328
    160228013337030816816871047094058040078018388
    1802685186417345190194770510103062042085020575
    2002895216459385210219820550113668646093622722
    230321002825214452402459106051256746490102625966
    26036100357590500270273100067014308505601170281422
    32044100533714620330325113077016909906401370302122

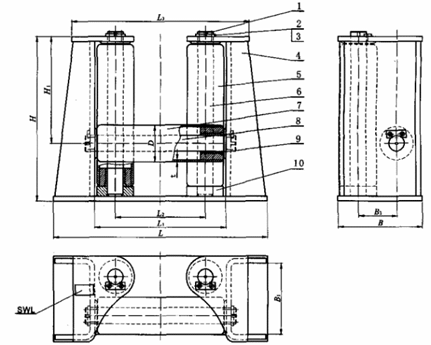

    Drawing of CB/T 3062 Type A 3 Tube Rollers Universal Fairleads Ship Mooring Equipment
