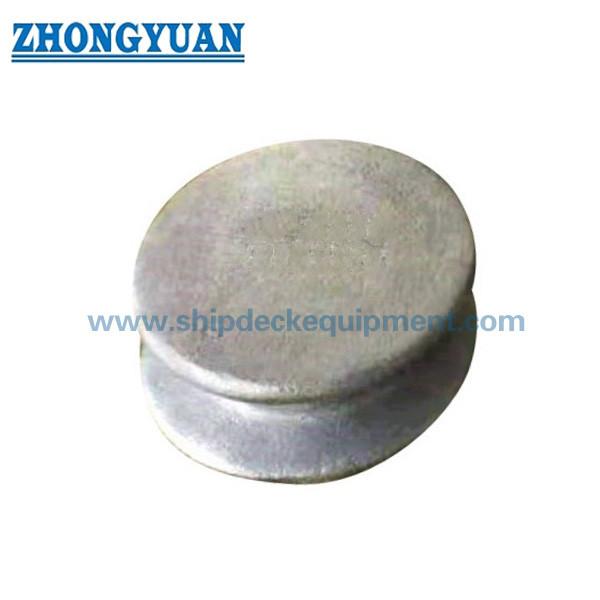

Casting Steel 6" 8" 10" Marine Button Chock ASTM A27-70-36 Ship Mooring Equipment

Description

Casting Steel 6" 8" 10" Marine Button Chock is made of ASTM A27-70-36. We produce all kinds of chocks for proper marine purpose. The chocks’ material can be mild steel plate, A27 C-Mn cast steel, stainless steel. The available Chocks are button chocks, open or closed chocks, roller chocks and Panama Canal chocks, Mooring Ring, Fabricated Chocks, Single Roller Chock, single roller button chock, thru deck single roller button chock, heavy duty single roller button chock, pivoting roller chock with vary sizes.

Main Technical Specification:

1. Model Type: Chock
2. Dimensions(inches): Button Chocks (6”, 8”, 9”, 9-1/2”, 10”, 11”); Open Chocks (4”x8”, 5”x11”, 6”x12”, 8”x16”); Closed Chocks (4”x8”, 6”x12”, 8”x16”); Panama Canal Chocks (12”x10”, 14”x10” 16”x10”, 22”x11”, 18x12”, 24”x12”); Panama Chocks (Bulwark Type) (12”x10”, 14”x10”); Mooring Ring (8”x12), Fabricated Steel Button Chock (3-1/2”, 8-1/2”, 11”, 12”); Fabricated Steel Open Chock, Fabricated Steel Combination Bitt.
3. Material Grade: Mild Steel Plate (fabricated one), ASTM A27-70-36 Cast Steel, Casting Stainless Steel, Stainless Steel Plate (fabricated one)
4. Quality Control:Heat Treatment for casting, Radiographic Examination (RT), Magnetic Testing (MT), Pull Load Test
5. Surface treatment: sandblasting to S2.5, one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
6. Certificate: ABS Approval and Mill certificate.

Main Technical Parameters:

Drawing of ASTM A27-70-36 Casting Steel 6" 8" 10" Marine Button Chock Ship Mooring Equipment
