    JIS F 2026 Type BR Five Tube Rollers Universal Fairleads with Upper Roller Ship Mooring Equipment

    JIS F 2026 Type BR Five Tube Rollers Universal Fairleads with Upper Roller Ship Mooring Equipment


    Description

    Deck end roller is located on the overboard side deck for ship’s mooring. It is produced according to Japanese standard. It is an important device for ship mooring. It is a universal fairlead which helps to lead the ropes from directions. Smooth surface protects the rope. Widely applicable to dredgers, crane ships, piling boats and other engineering vessels;


    Main Technical Specification:

    1. Standard: JIS F 2026-1980
    2. Type: Type BR, Type BL;
    3. Roller diameters: 140~315mm;
    4. Weight: 235~2050kg
    5. Materials: C-Mn Steel, Mild Steel, Stainless Steel
    6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
    7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.

    Main Technical Parameters:

    Nominal
    Dia.
    Frame
    BB1bb1b2b3b4DD1D2D3Hhhlh2h3LLl
    1403103901506920452590140120804802751304050515805
    16036046017582226535110160140905152901454560570890
    180410525200952480401351801501005603151555070620960
    20046058322510826904516020016011059033017060806751049
    250565701280133301055520025020013071541519575908251303
    3156708243301593412565240300240160870520220901009801562
    Nominal
    Dia.
    FrameLeg of weldWeight
    (kg)
     Il1l2l3l4RR1tt1t2t3t4ff1f2f3
    140335120605020407012101662096124235
    160365135655020458514101882297126353
    1803901457050205095161020102499128496
    2004201608050206011018122210261010148648
    2505202101056025751352014261230101214101176
    3156202601306025901602216301434121416102050

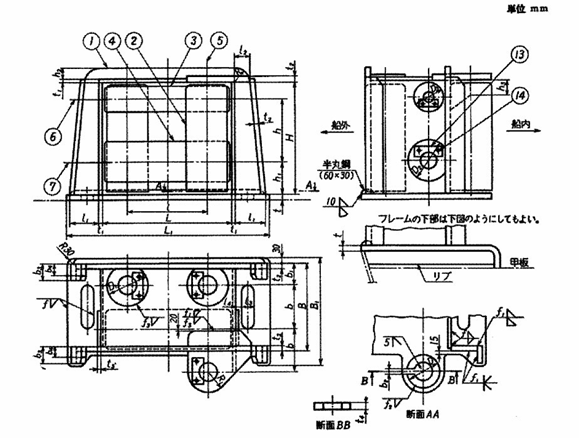

    Drawing of JIS F 2026 Type BR Five Tube Rollers Universal Fairleads with Upper Roller Ship Mooring Equipment
