    JIS F 2025 Type A Detachable Plug Type Anchor Chain Cable Clenches Ship Mooring Equipment

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

    JIS F 2025 Type A Detachable Plug Type Anchor Chain Cable Clenches Ship Mooring Equipment

    JIS F 2025 Type A Detachable Plug Type Anchor Chain Cable Clenches Ship Mooring Equipment


    Description:

    Plug type anchor releaser is used for securing the anchor chains in the chain locker. Plug type anchor releaser is applicable to anchor chain diameter 52mm to 120mm and commonly used on large and medium ships. It is installed on the anchor chains storage bulkhead and convenient, easy to operate when ship is in the emergent circumstance. Plug type anchor releaser is applicable up to Grade 2 anchor chains.


    Main Technical Specification:

    1. Technical Standard: JIS F2025-1992;
    2. Type: Type A, Detachable Type
    3. Nominal Chain Diameter: 52mm to 120mm
    4. Applicable to Grade 2 and Grade 3 Anchor Chains;
    5. Watertight function test
    6. Materials: C-Mn Steel, Stainless Steel,
    7. Excellent Flexibility;
    8. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, customized surface treatment available.
    9. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
    10. Can be Customized

    Main Technical Parameter:

    Nominal No.Applicable Anchor Chain Dia.(mm)L1L3B2H1H2D1D2h1d1

    Weight

    (kg)

    5250-52384460238638254571901640.5
    5654-56420486246698858611941648.0
    6058-60448504254749462651981653.9
    6462-644785242648010066692021660.0
    6866-685045702828711475782121981.4
    7876-785765942929512280832171992.8
    8481-84624628302102131858822319106
    9087-90670660316110140909323019128
    9592-95708686330118148959823522146
    10298-10276272434612815810010324222188
    111105-11182877036413917111011025122231
    120114-12089281038615018412012326022274

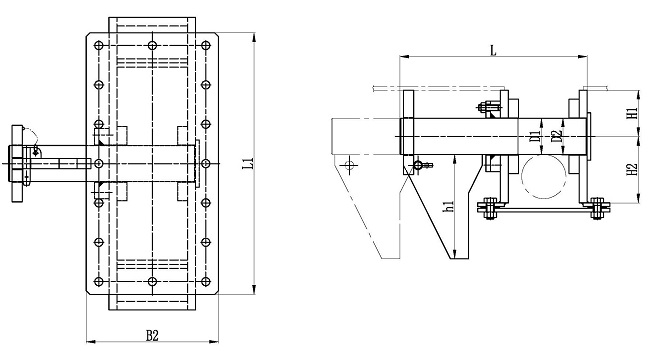

    Drawing of JIS F 2025 Type A Detachable Plug Type Anchor Chain Cable Clenches Ship Mooring Equipment
