    CB 531 Simple Anchor Chain Cable Clench Release Anchor Chain Ship Mooring Equipment

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

    CB 531 Simple Anchor Chain Cable Clench Release Anchor Chain Ship Mooring Equipment

    CB 531 Simple Anchor Chain Cable Clench Release Anchor Chain Ship Mooring Equipment


    Description:

    Simple type anchor releaser is one of popular anchor releasing devices. Although it is called the simple anchor releaser and it can still- hold the nominal diameter of 17mm up to 37mm anchor chains. Besides, it is easy to operate the simple anchor releaser and keep safety when ship is sailing. If you have any requirement about the products, we can do it as you request.


    Main Technical Specification:

    1. Technical Standard: CB531-66;

    2. Nominal Chain Diameter: 17mm to 37mm

    3. Applicable to Grade 2 and Grade 3 Anchor Chains;

    4. Materials: C-Mn Steel, Stainless Steel,

    5. Excellent Flexibility;

    6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, customized surface treatment available.

    7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

    8. Can be Customized


    Main Technical Parameter:

    Cale diameter

    mm

    LL1BB1B2B3H1H2H3H4Rt1t2t3dWeight kg≈
    17-19150352385412814090100100118100645288.93
    22-2519640270611461701101301101451258463014.38
    28-31256453057016520013016012018015010563025.41
    34-37324553608419823015019013021517512683636.88

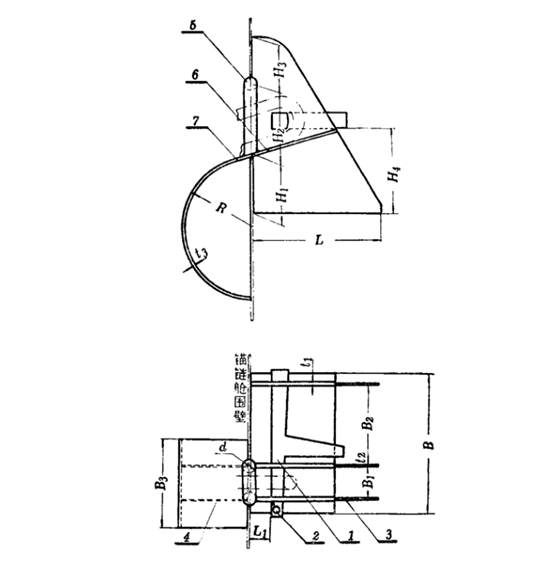

    Drawing of CB 531 Simple Anchor Chain Cable Clench Release Anchor Chain Ship Mooring Equipment
