    JIS F 3410 Type F Forging Steel Welded Ovel Eyeplate Ship Mooring Equipment

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

    JIS F 3410 Type F Forging Steel Welded Ovel Eyeplate Ship Mooring Equipment

    JIS F 3410 Type F Forging Steel Welded Ovel Eyeplate Ship Mooring Equipment


    Description:

    As an eye plate for ships that can be used when fixing structures such as rope terminals, shackles, pulleys, etc.


    Main Technical Specification:

    1.Standard: JIS F3410-1999,

    2.Nominal Sizes: 3-15mm

    3.Type: Type F,

    4.Permissible Load: 29.7 to 147KN

    5.Material: Mild Steel, Stainless Steel C-Mn Steel Forging;

    6.The surface of the finished eyeplate is free from visible cracks and flaking.

    7.Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer;

    8. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.


    Main Technical Parameter:


    Nominal
    size
    Permissible
    load
    KN
    dLRL1BThrr1r2Welding Leg
    f
    Weight(kg)
    329.428852513060151318122572.44
    549341002815070152020152593.88
    7.573.542115301801002025252025117.5
    1098501353221012020283025251311.7
    15147601603425014027363630271020

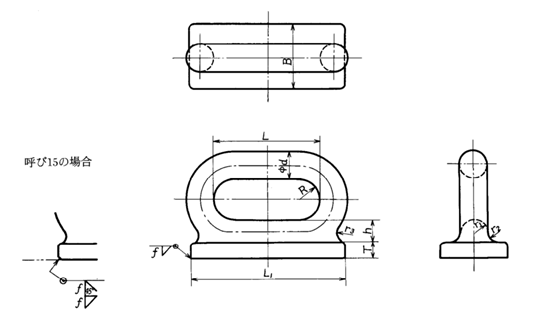

    Drawing of JIS F 3410 Type F Forging Steel Welded Ovel Eyeplate Ship Mooring Equipment

    Quality JIS F 3410 Type F Forging Steel Welded Ovel Eyeplate Ship Mooring Equipment for sale
