    JIS F 2014 Casting Open Type 2 Rollers Shipside Fairlead Rollers Ship Mooring Equipment

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

    JIS F 2014 Casting Open Type 2 Rollers Shipside Fairlead Rollers Ship Mooring Equipment

    JIS F 2014 Casting Open Type 2 Rollers Shipside Fairlead Rollers Ship Mooring Equipment


    Description:

    Japanese standard JIS F 2014-1987 fairlead rollers with pedestal have types as following: type A (with one roller); open type AF AS (with two rollers); open type CF CS (with three rollers); closed type BF BS (with two rollers);closed type BF BS(with three rollers). Open type AF AS is two rollers with nominal diameter of 150mm to 450mm and it is perfectly produced to lead wire ropes and hemp ropes. If you are looking for this kind of fairlead, we can provide you the high quality one. Please contact us as early as possible.


    Main Technical Specification:

    1. Technical Standard: JIS F 2014-1987
    2. Type: AF & AS OPEN TYPE
    3. Roller Diameters: 150~400mm
    4. Roller No.: 2 Rollers
    5. Roller Weight:32.1~336kg
    6. Materials: Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron
    7. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.
    8. Classification Certificates: NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
    9. Can be Customized

    Main Technical Parameter:

    TypeNominal sizeDLll1l2
    AF & AS150150740420160/
    200200930530200/
    2502501100640230/
    3003001270750260/
    3503501440860290/
    4004001610970320/
    AS45045018001080360/

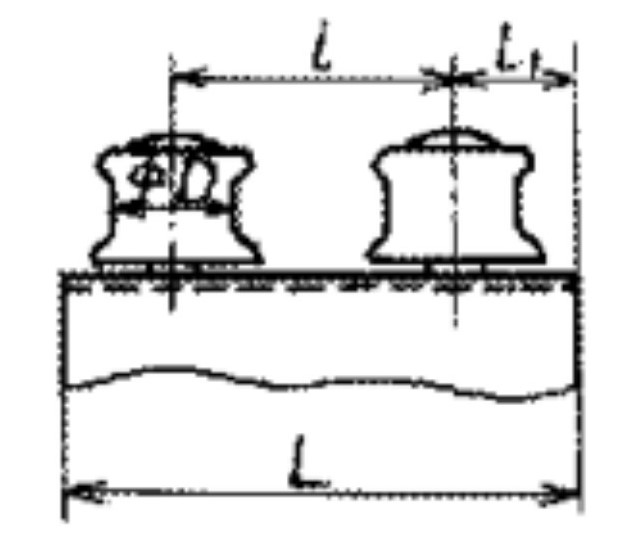

    Drawings of JIS F 2014 Casting Open Type 2 Rollers Shipside Fairlead Rollers Ship Mooring Equipment
