    DIN 81907 Form A Casting Roller Pedestal Roller Fairleads Ship Mooring Equipment

    DIN 81907 Form A Casting Roller Pedestal Roller Fairleads Ship Mooring Equipment


    Description:

    DIN 81907 warping roller fairlead has type A cylindrical pedestal and type B conical pedestal. The rollers are DIN81906. It is installed on the inner board deck to guide the mooring ropes. It is German standard.


    Main Technical Specification:

    1. Technical Standard: DIN81906-1999 (Roller), DIN 81907-1997;
    2. Type: Form A roller on cylindrical pedestal
    3. Roller Diameters: 160~560mm
    4. Roller No.: Single Roller
    5. Roller Weight:12~580kg
    6. Materials: Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, NodularCast Iron
    7. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.
    8. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
    9. Can be Customized

    Main Technical Parameters:

    Nominal
    No.
    SWL
    kN
    h
    Form A
    h
    Form B
    abCd1x S1d2d3
    士1
    d4d5f
    110200-960135219,1 X 12,525562--282
    400---482
    600---682
    800---882
    220200-960135273 X 12,531072--305
    400---505
    600---705
    800---905
    330200-960135355,6 X 12,539587--329
    400---529
    600---729
    800---929
    550200-960135457 X 12,5495108--363
    400---563
    600---763
    800---963
    880200-980175559 X 12,5595127--411
    400---611
    600---811
    800---1011
    -10005608251211
    12120200-1080175660 X 14,2705162--459
    400---659
    600---859
    800---1059
    -10006609251259
    -12006609751459
    20200200-12100220660 X 17,5705192--483
    400---683
    600---883
    -8006608701083
    -10006609251283
    -12006609751483
    -140066010301683
    32320200-12100220813 X 16865232--553
    400---753
    600---953
    -80081010201153
    -100081010751353
    -120081011251553
    -140081011801753

    Nominal

    No.

    l1l2
    +1
    -0.3
    l3l4l5l6 ≈
    Form A
    l6 ≈
    Form B
    rS2S3z ≈
    11743870208010-1013-2
    22283870208010-1013-3
    33103870209010-1013-3
    541238702011010-1013-3
    850445803013015131516153
    12602701103018015141516153
    2058581130402002022,52020155
    327401311804024020202020155

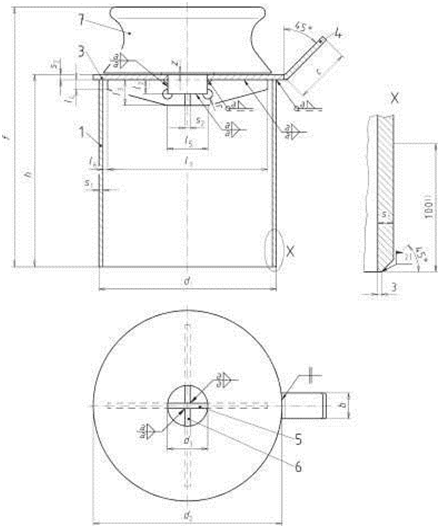

    Drawing of DIN 81907 Form A Casting Roller Pedestal Roller Fairleads Ship Mooring Equipment
