    CB 34-76 Type B Bulwark Bolted Casting Steel Mooring Chock Ship Mooring Equipment

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

    CB 34-76 Type B Bulwark Bolted Casting Steel Mooring Chock Ship Mooring Equipment

    CB 34-76 Type B Bulwark Bolted Casting Steel Mooring Chock Ship Mooring Equipment


    Description:

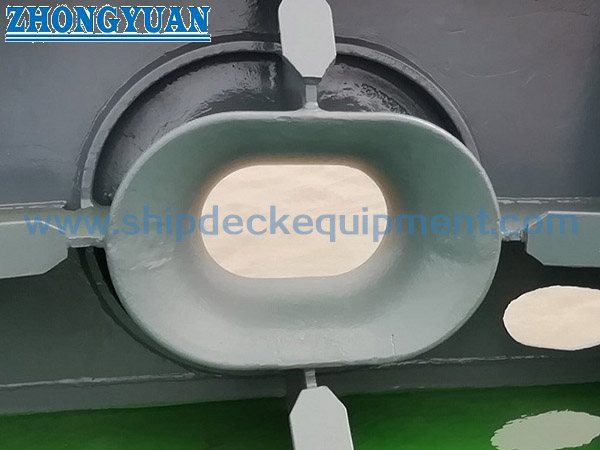

    Mooring chock, welded on deck or bulwark, is used to guide and control the mooring ropes to a certain direction. Its surface is polished smoothly in order to reduce the friction of the rope. CB* 34-76 marine mooring chocks have four types: CB34-76 type A, type B, type C, type D.

    Main Technical Specification:
    1.Type: Type B, bolted type
    2.Materials: Casting C-Mn Steel, Casting Iron, Casting Stainless Steel, also can supply special steel for icebreaker.
    3.Technical Standard: CB 34-76
    4.Weight: 22.6-205kg;
    5.Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.
    6.Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS

    Main Technical Parameter:

    Maximum diameter of cableMaximum girth of flaxMaximum diameter of nylon cableLL1L2BB1B2b1b2b3RR1R2Bulwark opening dimensionsRivets or bolts

    Weight

    kg

    L3B3diameterNumber
    18.61603520030040013023033018110225815145310240121222.6
    22.52004526040052017031043025160288430190415325161249.3
    28.02305532046559020034547028175309530210480360161671.2
    33.5270704005727202604305803220035108332605924502016118
    43.5325904806858703105257003524040126443207055452416205

    Drawing of CB 34-76 Type B Bulwark Bolted Casting Steel Mooring Chock Ship Mooring Equipment


    Quality CB 34-76 Type B Bulwark Bolted Casting Steel Mooring Chock Ship Mooring Equipment for sale
