    GB/T 3844 Roller Bar Type Anchor Chain Stopper Ship Mooring Equipment

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

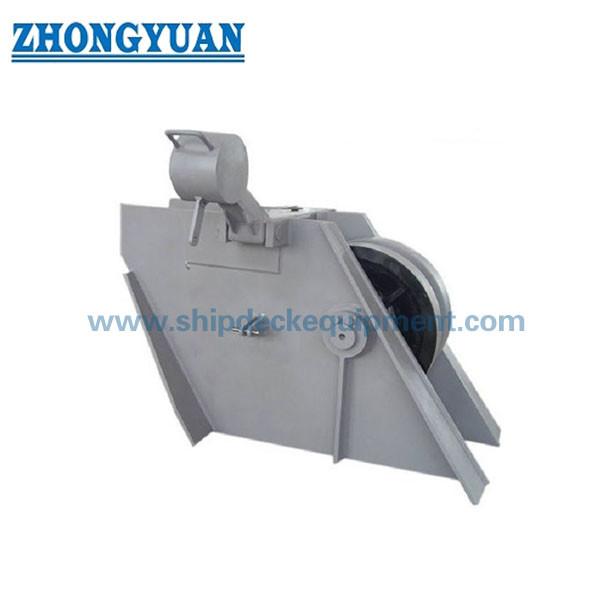

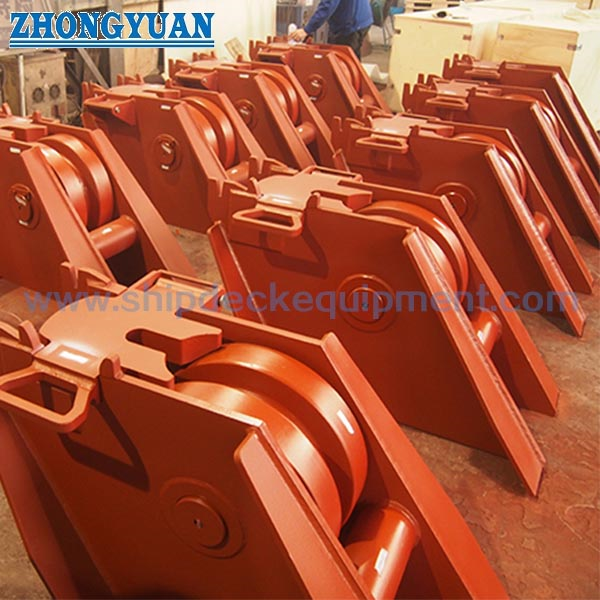

    GB/T 3844 Roller Bar Type Anchor Chain Stopper Ship Mooring Equipment

    GB/T 3844 Roller Bar Type Anchor Chain Stopper Ship Mooring Equipment


    Description

    Chain stopper is to fix the anchor chain & anchor in position even in heavy sea conditions. It alwaysreduce the pull load suffered by windlass. It is designed based on the standard chain stopper strength 80% of anchor chain's minimum breaking load. NDE test is applicable to all of chain stopper we produced.GB/T 3844 anchor chain stopper is applicable to the chain size between 44mm to 132mm. For smaller size of chain please contact with us and refer to other design standard.


    Main Technical Specification

    1. Technical Standard: GB/T 3844-2000

    2. Type: Roller lever type

    3. Chain Size: 42-132mm

    4. Materials: Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron, Steel Forging,

    5. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.

    6. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

    7. Can be Customized Main Technical Parameter:


    Nominal
    Diameter
    Chain Dia.
    (mm)
    LL1L2L3L4Bb1Dd1d2h1h2tt1Weight
    (kg)
    4442~4410003704002708038026048422693922811232274
    4846~4810504204503008544628652826734143061234351
    5250~5211004405003209051031057232774403381436451
    5654~5611504505503409255631660034814603541538536
    6058~6012004705703609561033062038874903781640651
    6462~64125050060037010066634664040945204001742753
    6866~68130055064039102732372680421015404201845939
    7370~731350570670411108004007304510958046020481178
    7876~7814006107004421158654257804811663049022501422
    8481~8414606507404751209404548405012467053024551758
    9087~90154071078050713510304849005513272057026602171
    9592~95160074082053514010805089505813976061028652567
    10297~1021680790870572145115054010206014880065030702755
    107105~1071750840900600150121056910706315486069032753640
    114111~1141820880940637160127059811406816391074034804302
    122117~12218809301010679165134063212207017398079036855326
    132124~1321960100010807301751440674132075185106086038906244

    Drawing Of GB/T 3844 Roller Bar Type Anchor Chain Stopper Ship Mooring Equipment
