    JIS F 2005-1975 Deck Mounted Casting Steel Close Type Ship Mooring Chock Ship Mooring Equipment

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

    JIS F 2005-1975 Deck Mounted Casting Steel Close Type Ship Mooring Chock Ship Mooring Equipment

    JIS F 2005-1975 Deck Mounted Casting Steel Close Type Ship Mooring Chock Ship Mooring Equipment


    Description:

    JIS F 2005-1975 closed chock is one of the marine chocks, it is made according to the marine standard of Japanese Standard Association. Made of casting steel, it's surface can be galvanized, polished and black painted. It is mainly used to protect the marine rope from breaking and can at the same time extend the rope's service life.


    Main Technical Specification:

    1. Materials: Casting C-Mn Steel, Casting Stainless Steel, also can supply special steel for icebreaker.

    2. Technical Standard: JIS F2005-1975

    3. Weight:3.7 to 232kg;

    4. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.

    5. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS


    Main Technical Parameter:


    Nominal sizeLL1L2BHH1H2H3RR1T(T1)(R2)(R3)

    Leg

    of weld

    Calculated mass kgNominal dia. of applicable rope (Reference)

    Wire rope

    (6×24)

    Manila ropeNylon rope
    100100351706076141303538731210301878.7142418
    150150502509011020545505510516124529810.5163022
    2002007034812015028060707514520166040924184028

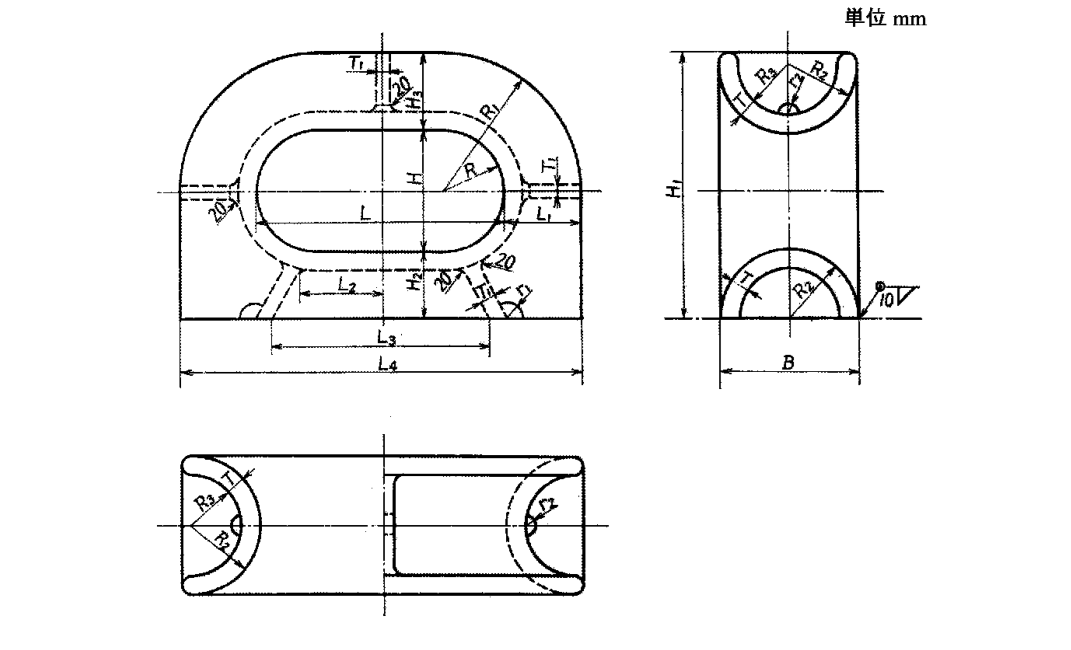

    Drawings of JIS F 2005-1975 Closed Chocks
    Nominal sizeLL1L2L3L4BHH1H2H3RR1R2R3r1r2TT1Calculated mass kg

    Nominal dia. of

    applicable rope (Reference)

    Wire

    rope

    Manila rope
    2502509210025043416020037280921001928056201524204820(6×12)50
    30030011411030052820025046410011412523910072252028228322.4(6×12)60
    350350125125350600220250485110125125250110803020302210324(6×24)70
    400400136135370672240250506120136125261120883020302213626(6×24)80
    450450148150400746260250528130140125273130943020362818430(6×24)85
    5005001601754508202802505501401601252851401003020403023235.5(6×24)90

    Drawing of JIS F 2005-1975 Deck Mounted Casting Steel Close Type Ship Mooring Chock Ship Mooring Equipment
