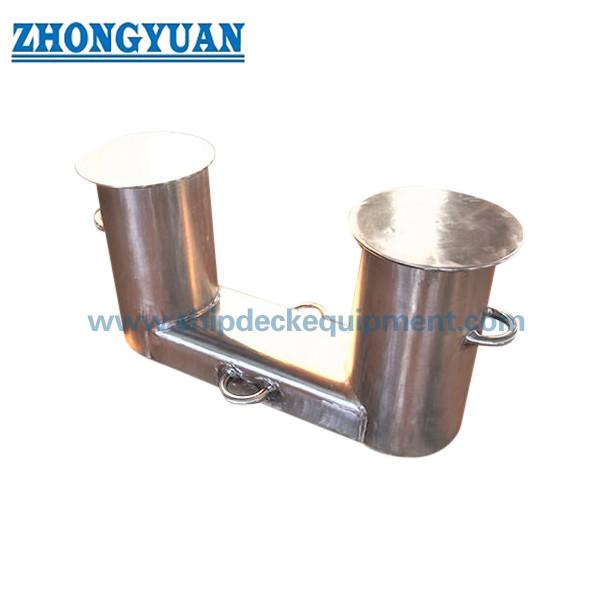

    DIN 82607:1995-1 Stainless Steel Double Bitt Bollard Ship Towing Equipment

    DIN 82607:1995-1 Stainless Steel Double Bitt Bollard Ship Towing Equipment


    Description:

    DIN 82607:1995-1 stainless steel double bitt bollard ship towing equipment is designed and shaped according to berthing capacity, wharf structure to meet the safety and convenience for the dock, mooring, shifting berth, turning around. Its' appearance ropes are wire rope, manila and sisal fiber rope, synthetic rope. Also we can provide you other standard of marine bollards.


    Main Technical Specification:

    1. Technic Standard: DIN82607:1995-1
    2. Type: DIN-1, DIN-2, DIN-3, DIN-5, DIN-8, DIN-12, DIN-20, DIN-32;
    3. Materials: Mild Steel, C-Mn Steel, Stainless Steel, also can supply special steel for icebreaker.
    4. Nominal Diameters:140 to 560mm;
    5. Weight: 21 to 770kg;
    6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Mirror or Satin Polished, Polished, Galvanized, customized surface treatment available.
    7. SWL Range: 10-320KN;
    8. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS,

    Main Technical Parameter:

    Type

    Max. Towing

    Load

    KN

    d1 ×s1bd2d3e±10h1h2h3h4h5rs2s3ua1a2

    Weight

    (kg) ≈

    DN-110139.7×6.3130160-43037010525-5540518-3.5418
    DN-220219,1x 8180240-57047511535-60506-27
    DN-332273 x10250300-70057013545-7560825-450
    DN-550323.9x10300355150880670150608585707085
    DN-880355.6 x 14,23303901701050780175751051058010805156
    DN-12120457 x16420490210120086019590130120901635906259
    DN-30200508 x17,547054523513509702301151551501001007376
    DN-32320559 x2053060025514001 000270145180110110649

    Drawing of DIN 82607:1995-1 Stainless Steel Double Bitt Bollard Ship Towing Equipment
