Marine Intermediate Shaft Bearing Ship Propulsion System
Description
This kind of intermediate bearing is applicable for Ship shaft ratio pressure is greater than the normal specification ratio pressure (0.6MPa) above and need to adjust the shaft alignment, suitable for the selection of this type of large ratio pressure intermediate bearings. We supply different kinds of ship’s intermediate bearings
Main Technical Specification
D | Bolt | b 1 | b2 | b3 | b4 | c | h1 | h2 | h3 | L1 | L2 | L3 | L4 |
120-160 | 4 x M20 | 320 | 310 | 270 | 160 | 86 | 185 | 360 | 32 | 306 | 320 | 155 | 115 |
161- 200 | 4 x M20 | 380 | 370 | 320 | 190 | 106 | 220 | 420 | 32 | 330 | 350 | 170 | 130 |
201- 240 | 4 x M24 | 450 | 440 | 380 | 230 | 126 | 270 | 500 | 35 | 354 | 390 | 185 | 145 |
241-280 | 4x M30 | 514 | 506 | 430 | 260 | 150 | 300 | 560 | 38 | 406 | 450 | 205 | 175 |
281- 330 | 4 x M30 | 604 | 596 | 520 | 320 | 170 | 340 | 645 | 43 | 436 | 480 | 220 | 190 |
331- 390 | 4 x M36 | 684 | 664 | 580 | 360 | 200 | 380 | 730 | 48 | 480 | 540 | 245 | 215 |
391- 450 | 4 x M36 | 770 | 760 | 670 | 440 | 230 | 425 | 820 | 93 | 535 | 585 | 270 | 235 |
451- 510 | 4 X M42 | 860 | 860 | 760 | 480 | 280 | 480 | 920 | 108 | 620 | 700 | 320 | 280 |
511 - 570 | 4 X M42 | 960 | 910 | 810 | 510 | 290 | 530 | 1020 | 120 | 670 | 740 | 340 | 300 |
571 - 650 | 4 x M48 | 1080 | 1030 | 910 | 570 | 330 | 610 | 1150 | 147 | 770 | 850 | 385 | 345 |
651- 740 | 4 x M48 | 1190 | 1170 | 1020 | 660 | 380 | 720 | 1330 | 177 | 840 | 930 | 425 | 375 |

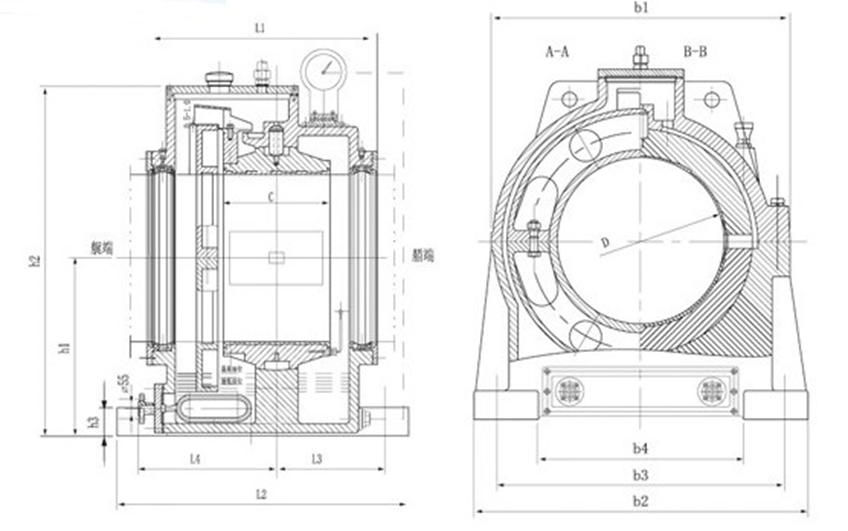

Drawing of Intermediate Shaft Bearing Ship Propulsion System
![]() |
