    Friction Resistant Stern Tube Seal Ship Propulsion System

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

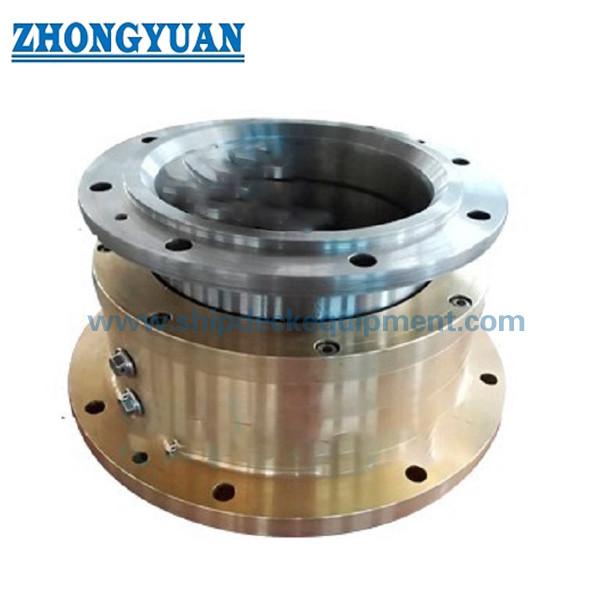

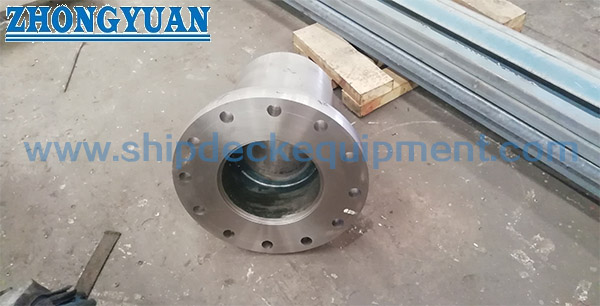

    Friction Resistant Stern Tube Seal Ship Propulsion System

    Friction Resistant Stern Tube Seal Ship Propulsion System


    Description:

    It is to prevent seawater and impurities from flowing from the propeller shaft into the ship and to prevent lubricants from leaking into the ocean. Properties: corrosion- and high-temperature, friction-resistant. Advantages: good sealing effect, long service life, low power consumption and easy installation. It can be applied to kinds of vessels whose working medium is oil.


    Main Technical Specifications:

    1. Composition: Copper housing, stainless steel bushing, galvanized clamp ring, gas tire seal
    2. Diameter range of stern shaft 50-1150mm
    3. Diameter of wearproof liner of stern shafts 70-1250mm
    4. Lubricating oil working pressure 1-2bar
    5. Lubricating oil working temperature -25℃~+110℃
    6. Line speed of stern shaft wearproof liner ≤7m/sec
    7. Average leakage 5~30ml/h
    8. Rubber Seal: Four
    9. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc
