    Casting Steel JIS Stockless Anchor Anchor And Anchor Chain

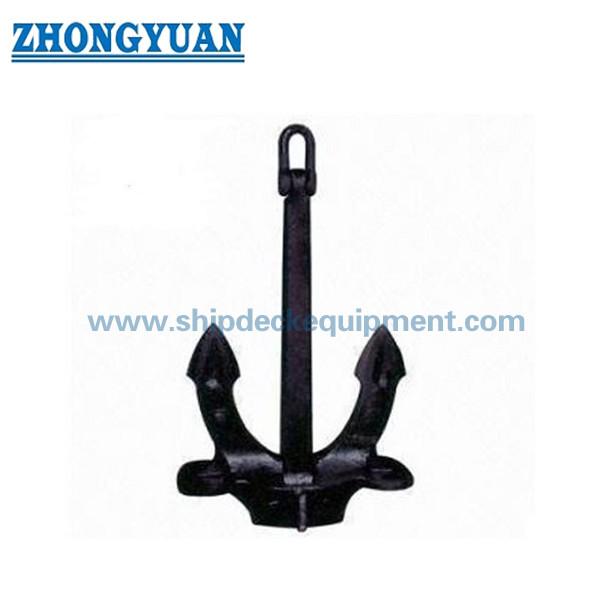

    Casting Steel JIS Stockless Anchor

    Description

    We are gold distributor for anchor factory. We supply marine anchor, offshore anchors. Japan stockless anchor material is ZG200-400 or ZG230-450 based on the Japanese standard JISF3301-1980. Japan stockless anchor flukes can engage in the soil simultaneously while working. It has the features of good stability, great adaptability to a large variety of soil and easy collection.

    We supply

    Ship HHP Anchors: 300 - 27,500Kg

    AC-14 HHP Anchors: 56 - 25,000Kg

    Danforth HHP Anchors: 20 - 18,000Lbs

    Light Weight Anchors: 23 - 6,804Kg

    Hall Anchors Type A, B, C: 100 - 15,400Kg

    Spek Anchors Type CB711-95 & M: 80 - 25,000Kg

    Japan Stockless Anchors: 100 - 20,000Kg

    GB545-96 Admiralty Anchors: 50 - 10,000Kg


    Main Technical Specification:

    1. Type: Japan Stockless Anchor
    2. Material: Casting Steel
    3. Nominal Weight: 180kg to 46000kg
    4. Surface Treatment: Black bitumen paint, anti-rusting paint or customized
    5. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.

    Main Technical Parameters:

    Nominal Weight
    (KG)
    Dimensions (mm)
    LL1L2HH1H2
    180650459910111480280
    2407205101010122530310
    3007705401080131570331
    3608205801150139610353
    4208606101200146640370
    4809006401260153670387
    5709506701330162700408
    66010007101440170740430
    7801060750180180780456
    90011107801550189820477
    102011608201620197860500
    114012008501680204890520
    129012508801750212920540
    144013009201820221960560
    159013409501880228990580

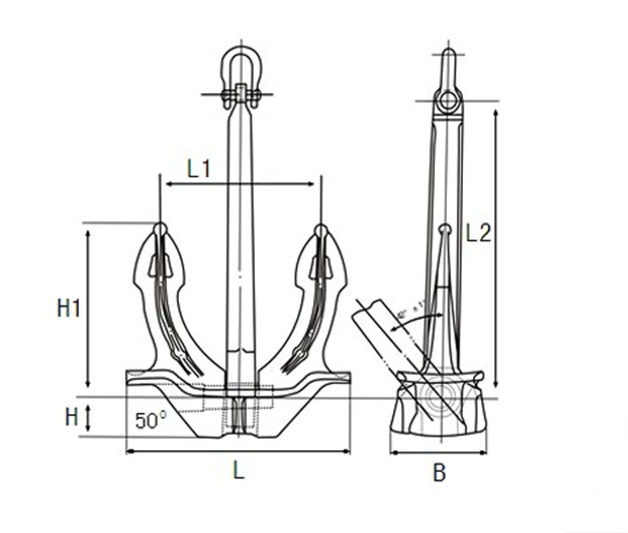

    Drawing of Casting Steel JIS Stockless Anchor
