    CB/T 3728 Type F None Weathertight Small Steel Hatch Cover with Dog Marine Outfitting

    CB/T 3728 Type F None Weathertight Small Steel Hatch Cover with Dog


    Description:

    CB/T 3728 type F small steel hatch cover is none weathertight. It is normally fitted on the deck above position 1 and 2, which required by Loadline Rule. It is fitted with thinner rubber packing which can pass water pouring test. It is normally fitted with one dog or one butterfly nut only


    Main Technical Specification:

    1. Standard: CB/T 3728-2011
    2. Material: Mild Steel, Stainless Steel,
    3. Packing Materials: Neoprene, NBR ,Hi - NBR,
    4. Dimension: As Standard or Customized, As client’s drawing,
    5. Application Type: None weathertight
    6. Closing Type: Hinged, one dog or one butterfly nut
    7. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
    8. Mill Certificate

    Main Technical Parameters:

    Nominal size
    L×B
    Clear size
    L1×B1×R
    Cover size
    L2×B2
    Cover thickness
    t
    Hatch coaming thickness
    t0
    Hatch coaming Height
    H
    Butterfly Nut
    Size

    Weight

    Type E
    (Exclusive Coaming)
    kg

    Weight

    Type F
    (Exclusive Coaming)
    kg

    450×630420x600x100508×68844,6100
    150
    200
    M1620.922.2
    512×69266,827.628.8
    530×530500x500x100588×58884,620.722.2
    592×59246,827.328.5
    630×630600x600x100688×68864,6M2026.327.0
    692×69286,835.135.9
    630×830600x800x100688×88844,632.533.1
    692×89266,843.644.2
    830×830800x800x100888×88884,639.240.5
    892×89266,853.354.5

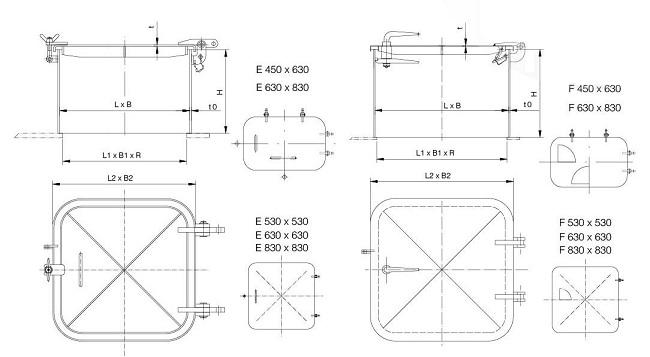

    Drawing of CB/T 3728 Type F None Weathertight Small Steel Hatch Cover with Dog Marine Outfitting
