    Hydraulic Operation Pilot Door, Watertight Ship Side Door

    Hydraulic Operation Watertight Ship Side Door


    Description:

    The Ship side door is suitable for scientific research ships and offshore ships, and can meet the requirements of weathertightness. The door is opened and closed by a hydraulic cylinder, operated by a hydraulic pump unit (HPU), or remotely operated by an electric pump unit or electro-hydraulic control or hand pump. The opening angle can reach 180 degrees.


    Main Technical Specification:

    1. Standard: CB 672, GB 10840,CB/T 3007 CB 3041,ISO Standard
    2. Material: Mild Steel, Stainless Steel, Aluminium,
    3. Test: Fire Approval Test, Gas Tightness Test, Hydraulic Pressure Test, Hose Test, Air Test, Chalk Test, as applicable
    4. Dimension: Customized, As client’s drawing, As Standard
    5. Application Type: Watertight, Weathertight, Gastight, Sound Proof, Fire Proof (C to A60 Class), as applicable
    6. Leaf Type: Single Leaf, Double Leaf, Single Skin, Double Skin,
    7. Application Location: Accommodation, Cargo Hold, Bulkhead, Boundary
    8. Open Type: Sliding, Hinged, Hand Wheel Quick Operate, Lever Operate, Dog Handle, etc.
    9. Power resource: Pneumatic, Electric, Hydraulic, Manual,
    10. Closing Device: Anti-Piracy
    11. Classification Certificates:Type Approval, EC MED Type Approval, CCS, NK, BV, ABS, DNV GL, LR, KR, IRS, RS, Etc.

    Main Technical Parameters:

    TypeClear Size
    B X H(mm)
    Open on Bulkhead
    (B+450) ×(H+450)mm
    SSD13000x30003450x3450
    SSD23000x35003450x3950
    SSD33500x35003950x3950
    SSD43500x40003950x4450
    SSD54000x40004450x4450

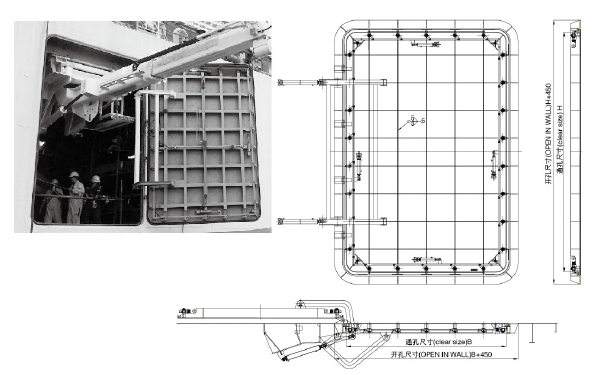

    Drawing of Hydraulic Operation Watertight Ship Side Door Marine Outfitting
