    CB 34 Type A Bulwark Welded Casting Steel Mooring Chock Ship Mooring Equipment

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

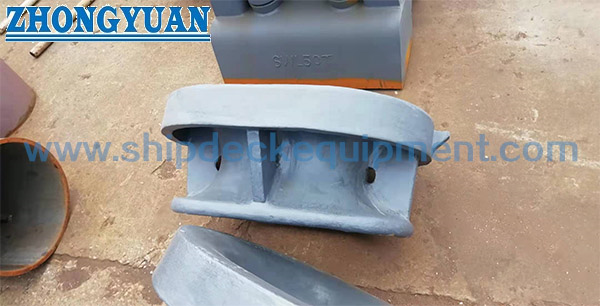

    CB 34 Type A Bulwark Welded Casting Steel Mooring Chock Ship Mooring Equipment

    CB 34 Type A Bulwark Welded Casting Steel Mooring Chock Ship Mooring Equipment


    Description:

    Mooring chock, welded on deck or bulwark, is used to guide and control the mooring ropes to a certain direction. Its surface is polished smoothly in order to reduce the friction of the rope. CB* 34-76 marine mooring chocks have four types: CB34-76 type A, type B, type C, type D.


    Main Technical Specification:

    1. Type: Type A;

    2. Materials: Casting C-Mn Steel, Casting Stainless Steel, also can supply special steel for icebreaker.

    3. Technical Standard: CB 34-76

    4. Weight: 16.4-171kg;

    5. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.

    6. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS


    Main Technical Parameter:

    Maximum diameter of cableMaximum girth of flaxMaximum diameter of nylon cableLL1L2BB1B2tb1b2b3RR1Bulwark opening dimensions

    Weight

    kg

    L3B3
    18.51603520030034013023027018181109582031024016.4
    22.520045260400450170310360222516010843041532540.4
    28.023055320465515200345395252817512953048036057.0
    33.5270704005726322604304903032200151083559245095.6
    43.53259048068575531052559535352401812645705545171.0

    Drawing of CB 34 Type A Bulwark Welded Casting Steel Mooring Chock Ship Mooring Equipment
