    GB/T 554 Welded Type Double Cross Bitt Bollard Ship Mooring Equipment Ship Mooring Equipment

    GB/T 554 Welded Type Double Cross Bitt Bollard Ship Mooring Equipment


    Description:

    GB/T 554 Welded Type Double Cross Bitt Bollard Ship Mooring Equipment is double cruciform bollards. It has different nominal diameters. It has bolted type and welded type. It is made of steel pipes and steel plate. All the surface is free of spurs. All these bollards get the approval of IACS Classification Society. We can provide bollard according to your specific requirements.We can also produce mirror polished stainless steel bollard for yacht.


    Main Technical Specification:

    1. Technic Standard: GB554-2008;

    2. Materials: Mild Steel, C-Mn Steel, Stainless Steel, also can supply special steel for icebreaker.

    3. Nominal Diameters:50 to 300mm;

    4. Weight: 7 to 576kg;

    5. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Mirror or Satin Polished, Polished, Galvanized, customized surface treatment available.

    6. SWL Range: 13KN- 185KN.

    7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.


    Main Technical Parameter:

    Nominal DiameterSafe Working LoadAA1A2Bdd1DD1h
    (SWL) / kN
    501318027090130324050658
    75182754001251704856759510
    100253504941420065751001201 2
    12531425590170240809512514514
    150435007002002709011015017016
    1756253077424132011012518020018
    20072600--360130145203225145
    2501057504501591802452801 55
    300185900540194215299330180
    Nominal Diameterh1h2HLr

    t

    t1

    ScrewWeight
    Screw SizeNumberkg
    5085-1903102064M1267
    751302904502575M1616
    10016035055028M1827
    1251954256603597M2249
    1502105007703571
    17524055085038108M24103
    2002756079596020129--181
    2503508551200251412310
    3004207311601440301614576

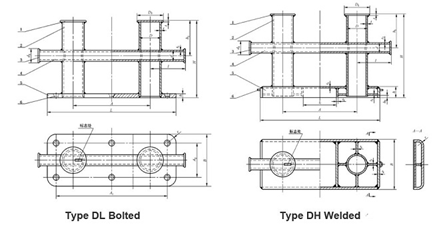

    Drawing of GB/T 554 Welded Type Double Cross Bitt Bollard Ship Mooring Equipment
