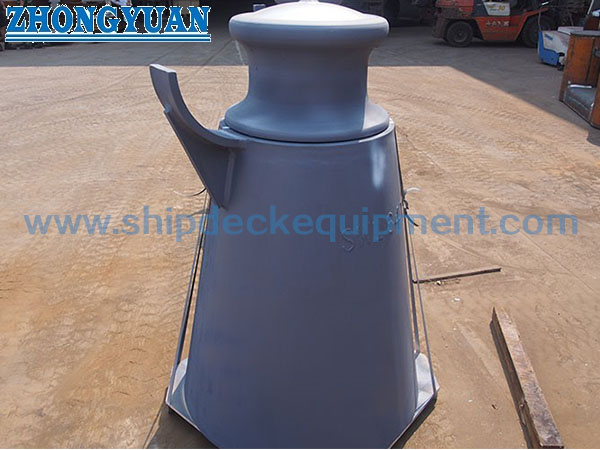

    CB/T 436 Type A Pedestal Roller Fairlead With Cleat Ship Mooring Equipment

    CB/T 436 Type A Pedestal Roller Fairlead With Cleat Ship Mooring Equipment


    Description

    CB*436-2000 cleat fairlead with single roller has type A and B. CB*436-2000 type A fitted with CB*58-83 roller. All weld and surface are ground smoothly.


    Main Technical Specification:

    1. Technical Standard: CB/T 436-2000;

    2. Roller Type:Type A with CB*58-83 standard roller

    3. Roller Diameters: 100mm~450mm

    4. Roller No.: Single Roller

    5. Roller Weight:9.9kg~452kg

    6. Base Weight: 63.9kg~454.4kg

    7. Materials: Mild C-Mn Steel, Stainless Steel, Casting Steel, NodularCast Iron

    8. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, customized surface treatment available.

    9. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

    10.Can be Customized


    Main Technical Parameter:

    Roller
    Dia.
    Applicable Wire Rope Dia. (Max.)
    (For reference only)
    DimensionsWeight
    kg
    Fiber
    Rope
    Dia.
    Hemp
    Rope
    Dia.
    SWR
    (GB /T 8918)
    Strength 1570 Mpa
    aD1D2D3D4HH1KK1LstT1RollerPedestal
    6X246X37
    100284011. 011601604840176123555603869.953. 9
    150324516~1814~162407160Z64211409775312833. 8129. 0
    20040552220310958033825150108853141068. 0178. 0
    2504565242480380107904082986010810041410114. 0207
    3005070302844012711047232160131010041614168. 0265
    3505575383450014412553634665131010041814248332. 0
    400658540~4238~4010056016114060037110141210052016355. 0401. 3
    45080 4442~4462018015566039490141212052016452. 0445.4
     Note: h= 1000 mm

    Drawing of CB/T 436 Type A Pedestal Roller Fairlead With Cleat Ship Mooring Equipment
